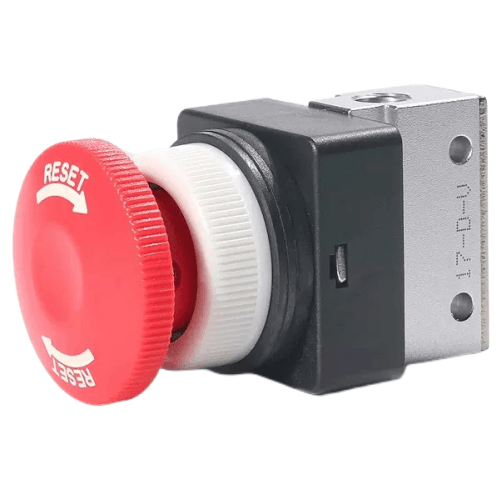

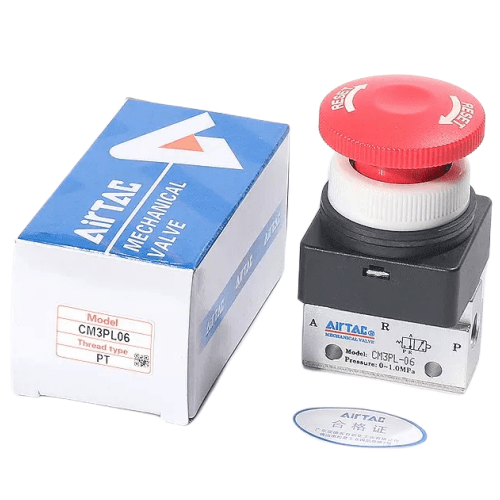

Airtac CM3PL Detent Rotary Button Type Mechanical Valve CM3PL06G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations for versatile application scenarios.
3. Poppet valve structure ensures superior sealing performance, smooth shifting action, and maintenance-free lubrication.
4. Supports multi-position mounting configurations for flexible installation and operation.
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life and enhanced operational reliability.
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard button caps against accidental actuation and mechanical interference, ensuring fail-safe performance.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PL Park & Rotate Button Mechanical Valve
AirTAC CM3PL06G Detent Rotary Button Mechanical Valve Technical Details
- Model: CM3PL06G
- Type: 3-position detent rotary mechanical valve (4-way/3-position closed center)
- Port configuration: P (pressure), A, B, R (exhaust)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 750 L/min (ANR)
- Operating temperature: -5℃ to 60℃ (no freeze)
- Body material: Reinforced PBT resin
- Seal material: Heat-resistant NBR
- Actuation torque: ≤1.5 N·m
- Position retention: Spring-assisted detent mechanism
- Weight: 195g ±5g
- Dimensions: 60mm(L) × 30mm(W) × 45mm(H) (excluding actuator)
- Mounting: Panel cutout Φ16mm
- Compliance: RoHS 2011/65/EU
Manual override valve with tactile position feedback, featuring a robust 45° rotation mechanism with positive detent stops. The ergonomic mushroom-shaped button allows gloved operation, while the dual-color position indicator (green/red) enables quick status verification. Includes built-in silencers for exhaust ports.
- Emergency stop override in automated assembly lines
- Manual mode selection for injection molding machines
- Position locking in material handling systems
- Maintenance bypass control for robotic workcells
- Educational pneumatic training stations
Installation protocol:
Apply thread sealant only on male ports (PT threads). For vertical mounting,
orient exhaust ports downward to prevent debris accumulation. Lubricate detent
groove monthly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3PL06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
