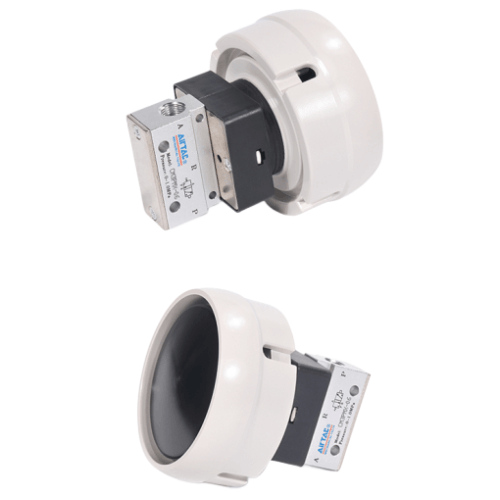

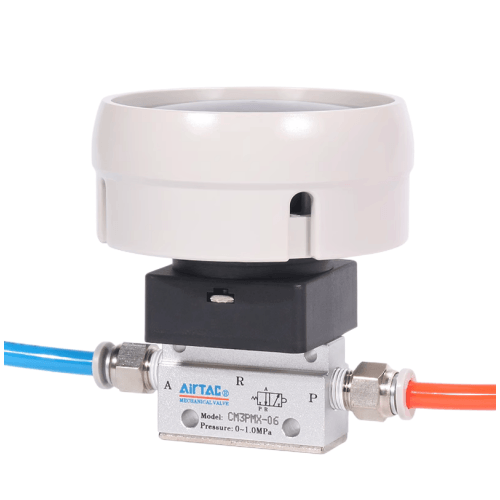

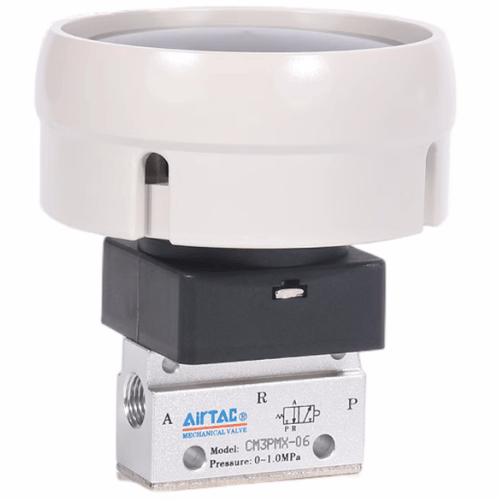

Airtac CM3PMX Large Mushroom Head Button Type Mechanical Valve CM3PMX05R
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations, enabling flexible deployment under various working conditions.
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Supports multiple mounting orientations for simplified installation and space optimization.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and reliable long-term performance.
6. CM3PMS and CM3PMX series are equipped with metal protective covers to shield the pushbutton cap from accidental impacts and prevent unintended actuation, ensuring operational safety and reliability.
Category: Mechanical Valves, Brand: AIRTAC, Series: CM3PMX
AirTAC CM3PMX05R Large Mushroom Head Push Button Mechanical Valve Specifications
- Model: CM3PMX05R
- Type: Manual reset mechanical valve (push-button operated)
- Port configuration: 3/2-way normally closed
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Button stroke: 20mm ±1mm
- Actuation force: 5N ±0.5N
- Body material: Nickel-plated brass
- Seal material: NBR/FKM (optional fluorocarbon rubber)
- Temperature range: -20℃ to 80℃
- Weight: 320g ±5g
- Dimensions: 54mm(L) × 54mm(W) × 82mm(H)
- Mounting thread: M20×1.5
- Protection rating: IP67 (dust/water resistant)
- Mechanical life: ≥500,000 cycles
Emergency stop valve with oversized 38mm mushroom head for rapid system shutdown. Features positive-locking mechanism requiring manual twist-release for reset. Corrosion-resistant construction with dual O-ring seals ensures reliable operation in harsh environments. Compatible with ISO 13850 safety standards.
- Industrial machinery emergency stop systems
- Assembly line safety interlocks
- Packaging equipment jam recovery
- Robotic cell safety access controls
- Hydraulic press emergency release
Installation note:
Requires 50mm clearance around button head for emergency access.
Mount vertically with ≤3° deviation. Perform monthly mechanical function tests.
| Property | Property Value |
|---|---|
| sku | CM3PMX05R |
| Position | 3-Port 2-Position |
| Port Size | M5 |
