Airtac CM3R Roller Lever Mechanical Valve CM3R05
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations for versatile operational conditions;
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Multi-position mounting capability enables flexible installation;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate robust metal actuators for enhanced durability and operational reliability;
6. CM3PMS and CM3PMX series integrate metal protective shrouds to prevent accidental button contact and ensure fail-safe operation.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3R Roller Lever Mechanical Valve

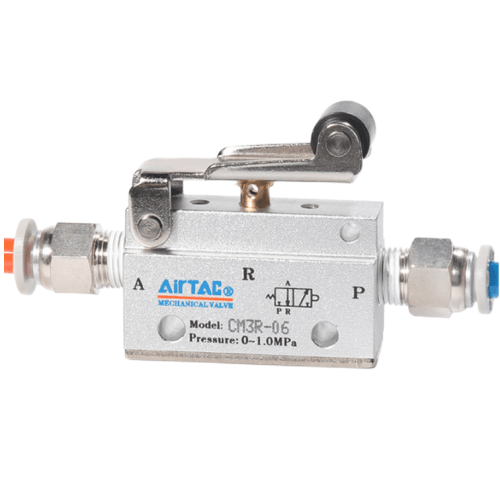

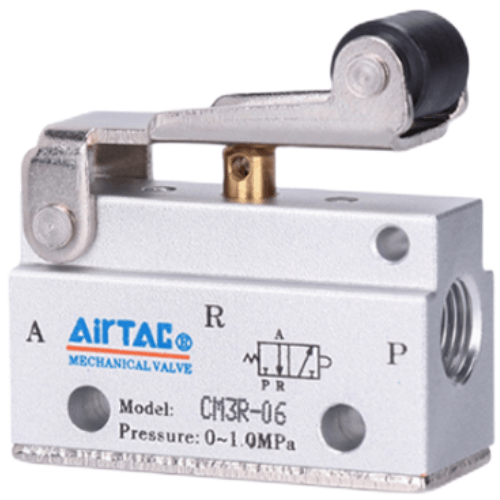

AirTAC CM3R Roller Lever Mechanical Valve CM3R05 Technical Details
- Model: CM3R05
- Type: 3-way (3/2) normally closed roller lever valve
- Port size: M5 (G1/8 equivalent flow)
- Operating pressure: 0.05–0.7 MPa
- Max operating frequency: 5 cycles/sec
- Temperature range: -5℃ to 60℃ (no freeze)
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Roller material: POM plastic with stainless steel axle
- Lever stroke: 2.5mm ±0.5mm
- Repeat accuracy: ±0.2mm
- Max operating force: 2.5N
- Mounting: Panel mount with M5×12 mounting screws
- Weight: 0.28kg (including accessories)
- Dimensions: 50mm(L) × 25mm(W) × 32mm(H)
- Protection rating: IP40 (dust protected)
Compact mechanical valve with roller lever actuator designed for precise position detection in pneumatic systems. Features low actuation force and smooth roller operation for high-frequency applications. Includes built-in flow control with adjustable exhaust speed (15° rotation screw). Requires 40μm filtered compressed air with ISO 8573-1:2010 class 4.4.3 air quality.
- Conveyor belt position sensing
- Cartesian robot end effector triggers
- Packaging machine product presence detection
- Assembly line workpiece positioning
- Material handling equipment safety interlocks
Installation note:
Mount with lever arm perpendicular to target surface movement.
Maintain 0.5-1mm gap between roller and actuator cam surface.
Lubricate roller bearing every 500,000 cycles using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3R05 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
