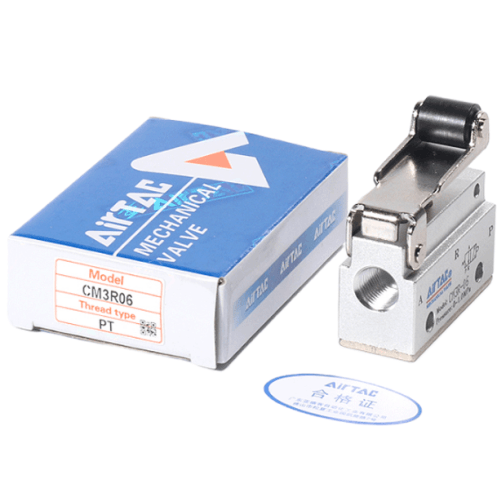

Airtac CM3R Roller Lever Mechanical Valve CM3R06G
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations for versatile operational conditions;
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Multi-position mounting capability enables flexible installation;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate robust metal actuators for enhanced durability and operational reliability;
6. CM3PMS and CM3PMX series integrate metal protective shrouds to prevent accidental button contact and ensure fail-safe operation.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3R Roller Lever Mechanical Valve

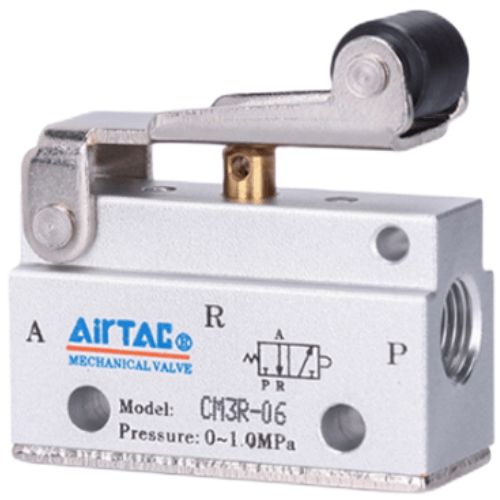

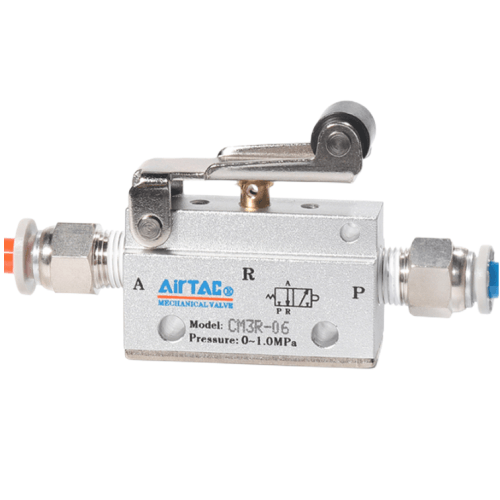

AirTAC CM3R06G Roller Lever Mechanical Valve Technical Details
- Model: CM3R06G
- Type: 3-way (3/2) roller lever operated mechanical valve
- Port configuration: PT1/8 (G1/8) female threads
- Operating pressure range: 0.05–0.7 MPa
- Proof pressure: 1.05 MPa
- Operating force: 2.5N ±0.5N (lever actuation force)
- Flow capacity: 750 L/min (ANR)
- Body material: Aluminum alloy surface anodized
- Seal material: NBR (Nitrile rubber)
- Lever type: Stainless steel roller lever with 10mm diameter wheel
- Temperature range: -5℃ to 80℃ (no freeze)
- Weight: 230g ±5g
- Dimensions: 53mm(L) × 38mm(W) × 74.5mm(H)
- Port positions: P (pressure), A (output), R (exhaust)
- Response time: ≤0.5s (mechanical actuation)
- Mounting: Direct piping or subplate mounting (ISO 15407-1 compatible)
Mechanically actuated pneumatic valve featuring smooth roller lever operation for repetitive mechanical triggering. The chrome-plated steel roller reduces friction during cam or workpiece contact, with over-travel protection mechanism. Features bubble-tight sealing and anti-vibration design for industrial environments.
- Position detection in automated conveyor systems
- Safety interlock mechanisms in press machines
- Workpiece counting systems in assembly lines
- Material handling equipment position feedback
- Packaging machine jam detection systems
Installation guidelines:
Mount with 15° maximum angular tolerance from actuation direction.
Lubricate roller bearing every 500,000 cycles using ISO VG32 hydraulic oil.
Maintain 2mm minimum overtravel after initial contact.
| Property | Property Value |
|---|---|
| sku | CM3R06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
