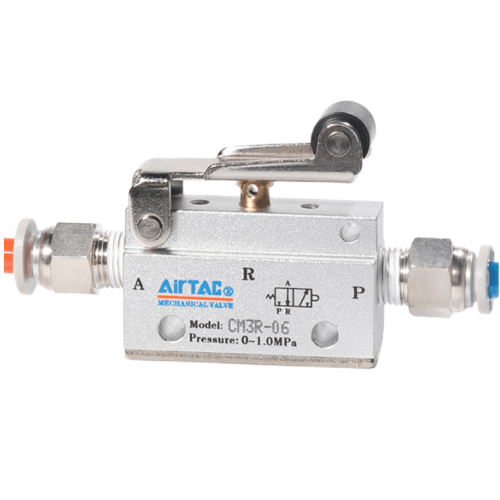

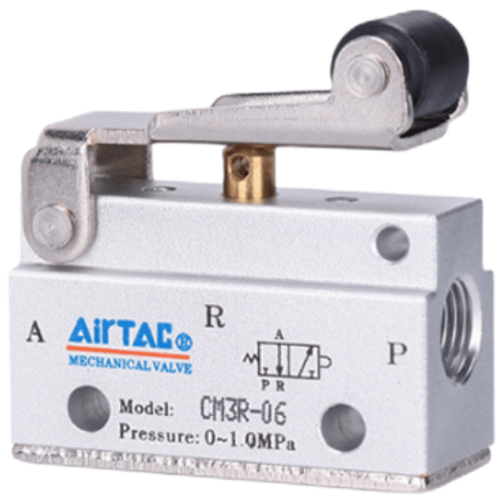

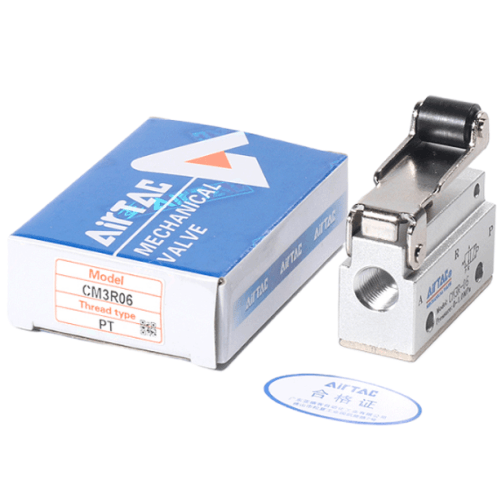

Airtac CM3R Roller Lever Mechanical Valve CM3R08-P1
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations for versatile operational conditions;
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Multi-position mounting capability enables flexible installation;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate robust metal actuators for enhanced durability and operational reliability;
6. CM3PMS and CM3PMX series integrate metal protective shrouds to prevent accidental button contact and ensure fail-safe operation.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3R Roller Lever Mechanical Valve
AirTAC CM3R08-P1 Roller Lever Mechanical Valve Specifications
- Model: CM3R08-P1
- Type: 3/2-position single-pilot operated (normally closed)
- Port size: PT1/8 (G1/8 thread standard)
- Operating force: 1.5-2.8N lever actuation force
- Pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Valve body material: Nickel-plated brass
- Seal material: NBR (nitrile rubber)
- Roller diameter: 8mm (stainless steel with PU coating)
- Lever stroke: 3mm ±0.5mm
- Weight: 182g ±3g
- Dimensions: 38mm(W) × 46mm(H) × 42mm(D)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥1 million operations
Compact roller lever valve with precision cam-follower mechanism, featuring a corrosion-resistant brass body and wear-compensating roller design. The angled lever (45° optimal trigger angle) enables reliable position detection in confined spaces. Includes built-in silencer (2.5dB noise reduction) and requires 5μm filtered compressed air.
- Conveyor belt position sensing in packaging lines
- Safety door interlocks for machinery guards
- Cartesian robot end-of-travel detection
- Textile machinery thread breakage monitoring
- Automated assembly jig clamping confirmation
Installation note:
Mount with 1.5-2mm pre-travel adjustment using the hexagonal lock nut.
Lubricate roller pivot quarterly with ISO VG32 hydraulic oil. Avoid lateral
impact forces exceeding 15N on the lever arm.
| Property | Property Value |
|---|---|
| sku | CM3R08-P1 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
