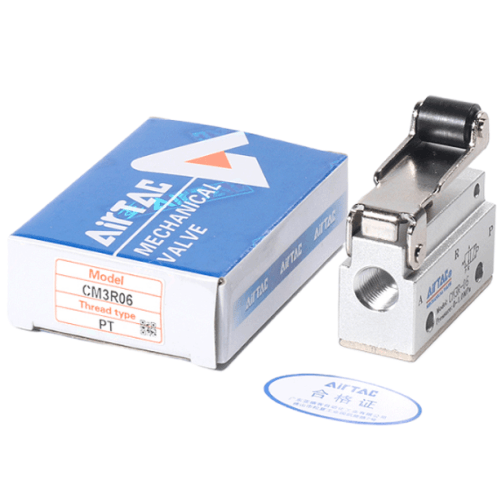

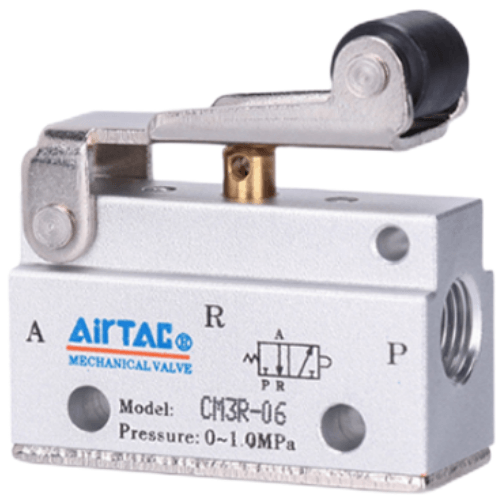

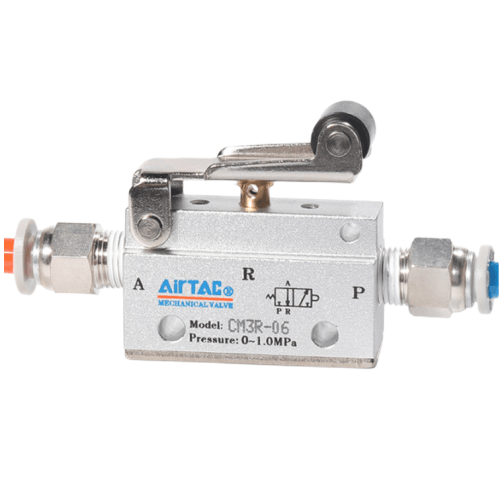

Airtac CM3R Roller Lever Mechanical Valve CM3R08G
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations for versatile operational conditions;
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Multi-position mounting capability enables flexible installation;
5. CM3L, CM3V, CM3R, and CM3Y series incorporate robust metal actuators for enhanced durability and operational reliability;
6. CM3PMS and CM3PMX series integrate metal protective shrouds to prevent accidental button contact and ensure fail-safe operation.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3R Roller Lever Mechanical Valve
AirTAC CM3R Roller Lever Mechanical Valve CM3R08G Technical Details
- Model: CM3R08G (Roller Lever Actuation Type)
- Valve type: 3/2-way normally closed (mechanical spring return)
- Port thread: G1/8 (BSPP) with optional NPT1/8 adapter
- Operating pressure range: 0.05–0.7 MPa (7–100 PSI)
- Max flow rate: 750 L/min (Cv=1.2 at 0.5 MPa)
- Actuation force: 2.5N±0.5N at roller tip
- Lever stroke: 3mm±0.5mm
- Roller diameter: 8mm (chrome-plated steel)
- Body material: Anodized aluminum alloy
- Seal material: High-wear resistance HNBR
- Temperature range: -10℃ to 80℃ (no ice formation)
- Weight: 220g±5g (including mounting hardware)
- Dimensions: 56mm(L) × 34mm(W) × 78mm(H)
- Mounting pattern: 25mm center-to-center (M4 threaded holes)
- Cycle life: ≥1,000,000 operations (under rated conditions)
Heavy-duty roller lever valve with precision cam mechanism for repeatable position sensing in harsh environments. Features anti-vibration locknuts and self-cleaning roller design that sheds debris. The 45° adjustable lever arm allows multi-directional actuation alignment. Requires 5-40μm filtered compressed air with ISO 8573-1:2010 class 4 air quality.
- Palletizer position detection in logistics automation
- Safety door interlocks in stamping presses
- Workpiece clamping confirmation in CNC fixtures
- Conveyor jam detection systems
- Agricultural machinery position limit control
Installation guidelines:
Mount with 0.5-1mm clearance between roller and actuator cam surface.
Lubricate pivot point quarterly with ISO VG32 hydraulic oil.
Avoid lateral impact forces exceeding 15N on lever arm.
| Property | Property Value |
|---|---|
| sku | CM3R08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
