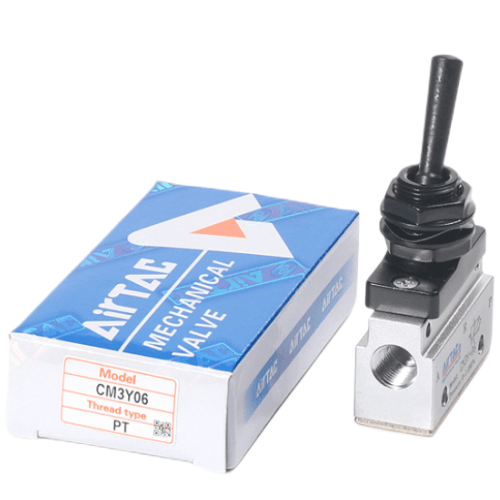

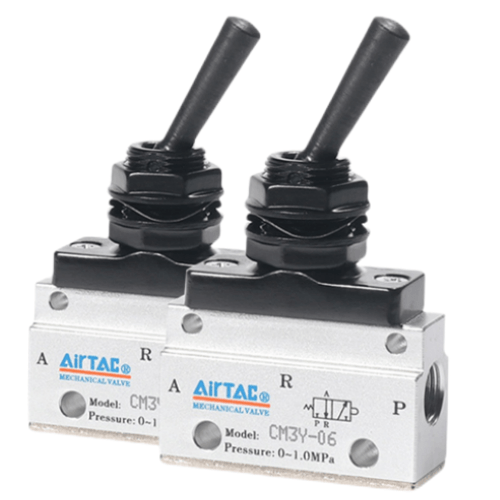

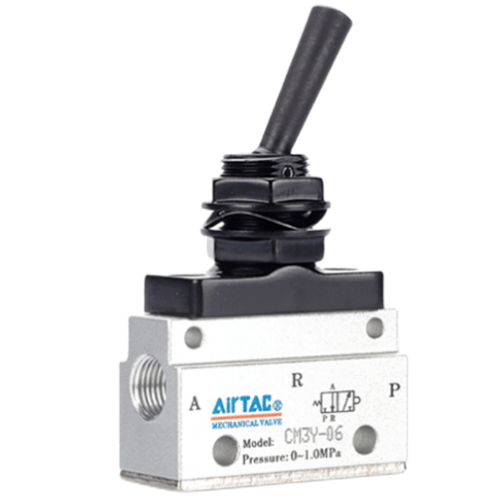

Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y05
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve
AirTAC CM3Y05 Rocker Arm Mechanical Valve Technical Details
- Model: CM3Y05
- Type: 3-way (3/2) rocker arm operated mechanical valve
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Body material: Anodized aluminum alloy (black oxidation treatment)
- Seal material: NBR (standard), VITON optional
- Operating temperature: -5℃ to 60℃
- Actuation force: ≤5N (manual operation)
- Mounting style: Panel-mounted with M5 fasteners
- Weight: 0.28kg ±5%
- Dimensions: 55mm(L) × 34mm(W) × 34mm(H)
- Flow coefficient (Cv): 0.45
- Response time: Instantaneous mechanical actuation
Manual override valve featuring positive mechanical engagement through 25° rocker arm rotation. The zinc-plated steel pivot mechanism ensures 100,000+ cycle durability. Integrated dust cover (IP54 rating) protects internal components in particulate environments. Requires no electrical connections - pure mechanical operation.
- Emergency stop controls in conveyor systems
- Manual mode override in automated production lines
- Pneumatic fixture clamping/release mechanisms
- Educational training equipment for pneumatics
- Mobile machinery requiring failsafe manual control
Installation guidance:
Mount with rocker arm accessible within 45° forward visibility angle.
Apply thread sealant on port connections (PT threads).
Lubricate pivot point annually with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3Y05 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
