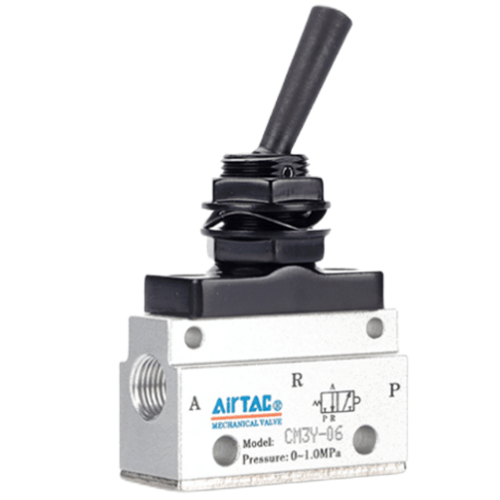

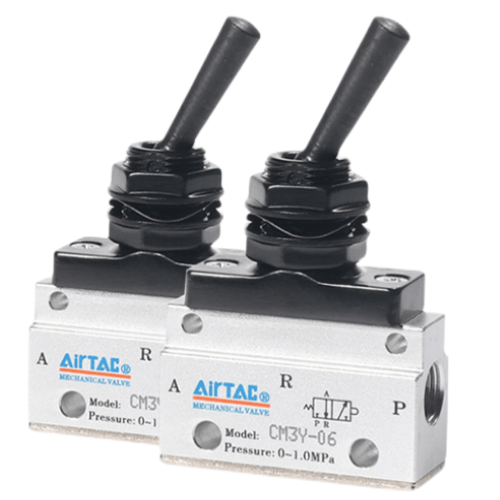

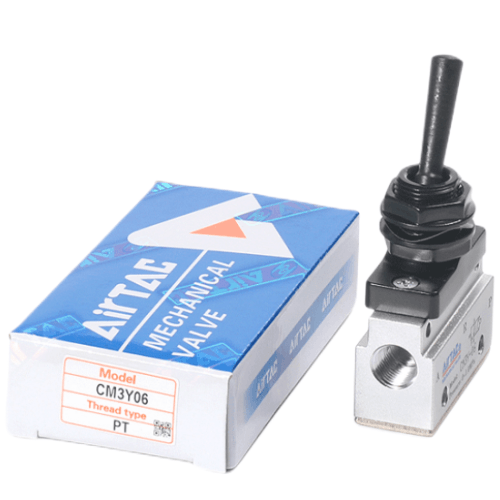

Airtac CM3Y Rocker Arm Type Mechanical Valve CM3Y08
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations optimized for varied working conditions;
3. Poppet valve design ensures excellent sealing performance with smooth actuation and maintenance-free operation without lubrication;
4. Flexible multi-position mounting options enable simplified installation and usage;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator heads for extended service life, enhanced reliability, and operational stability;
6. CM3PMS and CM3PMX models incorporate metal protective covers to safeguard push buttons against accidental impacts and prevent unintended actuation, ensuring enhanced operational safety.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3Y Rotary Lever Type Mechanical Valve
AirTAC CM3Y08 Lever-Actuated Mechanical Valve Technical Details
- Model: CM3Y08
- Type: 3-position (Lever Return) / 5-port
- Port configuration: P (pressure), A, B, EA, EB
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.05–0.7 MPa
- Max operating frequency: 2,000 cycles/min
- Actuation force: 3.5N ±0.5N at lever tip
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: Heat-resistant NBR (-10℃ to 120℃)
- Flow capacity: 1,200 NL/min (ANR)
- Weight: 280g ±5g
- Dimensions: 56mm(L) × 40mm(W) × 76mm(H)
- Mounting pattern: ISO 15407-1 compliant
- Vibration resistance: ≤50 m/s² (10-2000Hz)
- Shock resistance: 1,000 m/s² (3-axis)
Heavy-duty mechanical valve with precision roller-lever actuation, featuring dual exhaust ports for rapid cylinder response. The hardened stainless steel pivot mechanism ensures 1,000,000+ cycle durability in high-vibration environments. Includes dust-resistant boot seal (IP54) and anti-corrosion coating for outdoor applications.
- Cartesian robot end-effector tooling
- Conveyor diverter arm control systems
- Textile machinery thread tensioners
- Automated palletizer safety interlocks
- Food processing equipment (FDA-compliant grease)
Installation protocol:
Mount with M5x0.8 screws (3.5-4.5 N·m torque). Lubricate pivot point
with ISO VG32 pneumatic oil monthly in continuous operation. Maintain
15° maximum lever deflection angle during mechanism design.
| Property | Property Value |
|---|---|
| sku | CM3Y08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
