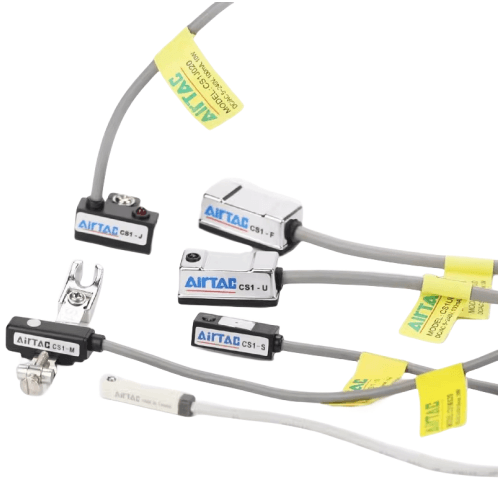

Airtac CS1JX Reed Sensor CS1JX050
$11.39
Regular price
$18.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1JX050
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The CS1JX reed sensor operates by utilizing a magnet or electromagnet to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This seemingly simple mechanism delivers robust circuit control capabilities, ensuring reliable operation in diverse industrial and commercial automation applications through its contact-based switching architecture.
Installation guidelines:
Mount parallel to cylinder axis with 3-5mm air gap between sensor face and magnet.
Use non-ferromagnetic mounting brackets. Maximum lateral offset tolerance: ±1.5mm.
2. This seemingly simple mechanism delivers robust circuit control capabilities, ensuring reliable operation in diverse industrial and commercial automation applications through its contact-based switching architecture.
AirTAC CS1JX050 Reed Sensor Technical Specifications
- Model: CS1JX050
- Type: Non-contact magnetic reed switch
- Voltage range: DC12-240V (AC/DC compatible)
- Output type: 2-wire normally open (NO)
- Detection distance: 5mm ±10%
- Protection rating: IP67 (dust/water resistant)
- Housing material: PBT + glass fiber reinforced
- Contact material: Rhodium-plated contacts
- Operating temperature: -20℃ to +70℃
- Response frequency: ≤2000Hz
- Maximum current: 100mA
- Wire length: 2m (standard), 78.7"
- Connection type: M8 3-pin quick disconnect
- Weight: 80g ±3g (including cable)
- Dimensions: 45mm(L) × 15mm(W) × 15mm(H)
Compact magnetic proximity sensor with epoxy-encapsulated reed switch, designed for precise position detection in pneumatic cylinders. Features shock-resistant construction and wide voltage compatibility. Integrated reverse polarity protection prevents installation errors.
Ideal Applications:
- Cylinder piston position feedback in automation lines
- Safety interlock systems for machinery guards
- Liquid level detection in process tanks
- Conveyor belt object presence verification
- Elevator door position monitoring
Installation guidelines:
Mount parallel to cylinder axis with 3-5mm air gap between sensor face and magnet.
Use non-ferromagnetic mounting brackets. Maximum lateral offset tolerance: ±1.5mm.
| Property | Property Value |
|---|---|
| sku | CS1JX050 |
