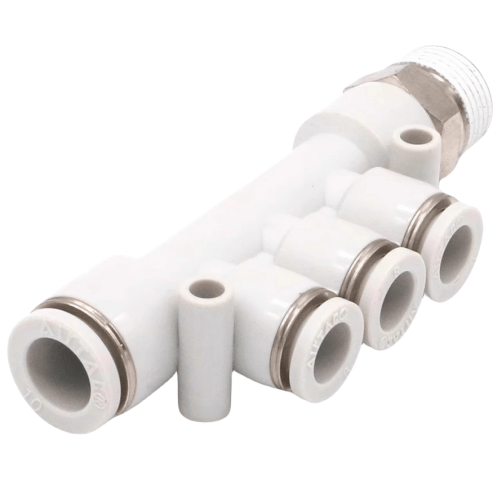

Airtac EPKD Threaded Five-way Fitting EPKD10-8-03
$5.91
Regular price
$13.41
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EPKD10-8-03
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, designed for comprehensive compatibility with diversified pneumatic systems;
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
Installation guidelines:
Apply PTFE tape to male threads using clockwise winding direction.
Avoid overtightening - recommended torque 1.8-2.2 N·m.
For vertical mounting, position input port downward to prevent debris accumulation.
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
AirTAC EPKD Series Five-Way Threaded Connector EPKD10-8-03 Technical Details
- Model: EPKD10-8-03
- Type: Brass five-way threaded connector with rotary joint
- Thread standard: M10×1.25 (male) / PT1/8 (female)
- Material: Lead-free brass CW617N
- Surface treatment: Nickel-plated (3-5μm thickness)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃ (non-freezing environment)
- Proof pressure: 3.0 MPa (435 psi)
- Seal material: NBR (Nitrile) O-rings
- Weight: 82g ±2g
- Dimensions: 30mm(L) × 25mm(W) × 25mm(H)
- Port configuration: 1 input, 4 outputs (T-type distribution)
- Torque resistance: ≤2.5 N·m during installation
High-density flow distribution block featuring 360° rotatable ports for flexible piping arrangements. Precision-machined with triple-stage deburring for optimal airflow (Cv value: 0.12). Includes integrated check valves to prevent reverse flow interference between output lines.
Ideal Applications:
- Multi-actuator control in CNC machinery
- Pneumatic circuit branching for assembly line equipment
- Compact air distribution in robotic end effectors
- Laboratory pneumatic tool manifolds
- Mobile hydraulic/pneumatic hybrid systems
Installation guidelines:
Apply PTFE tape to male threads using clockwise winding direction.
Avoid overtightening - recommended torque 1.8-2.2 N·m.
For vertical mounting, position input port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | EPKD10-8-03 |
