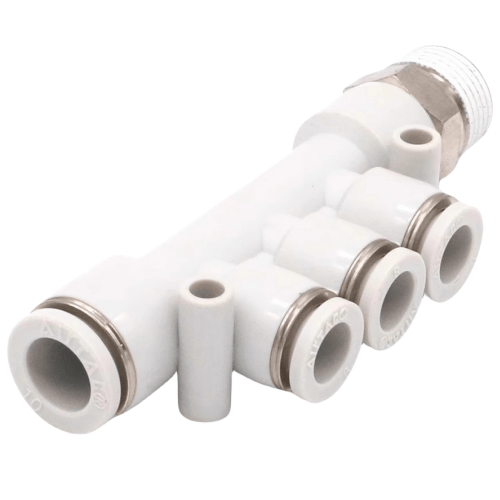

Airtac EPKD Threaded Five-way Fitting EPKD6-4-01
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
AirTAC EPKD Threaded Five-Way Fitting EPKD6-4-01 Technical Details
- Model: EPKD6-4-01 (P/N 131605)
- Type: Metric threaded five-way manifold connector
- Thread Standard: M5×0.8 (ISO 6149 compliant)
- Port Configuration: 1 input / 4 output ports
- Max Working Pressure: 1.0 MPa (145 psi)
- Burst Pressure: ≥3.0 MPa
- Material: Aluminum alloy 6063-T5 (anodized surface)
- Seal Type: Integrated NBR O-rings (replaceable)
- Temperature Range: -20℃ to 80℃ (continuous duty)
- Flow Rate: 200 NL/min @ 0.5 MPa
- Weight: 28g ±0.5g
- Dimensions: 50mm(L) × 20mm(W) × 20mm(H)
- Surface Hardness: HV 120-150
- Corrosion Resistance: 96hr salt spray test passed
- Certification: RoHS compliant
Precision-machined distribution block with leak-proof design, featuring 5 independent flow paths optimized for compact pneumatic systems. The hexagonal body allows tool-assisted installation, while the nickel-plated ports prevent galling during repeated assembly. Compatible with ISO 15407-1 actuators.
- Modular pneumatic control cabinets
- Robotic end-effector air distribution
- CNC machine tool clamping circuits
- Laboratory analytical instrument gas routing
- Food packaging machine air networks (dry air only)
Installation protocol:
Apply 2-3Nm torque during installation using 8mm wrench flats.
Use thread sealant only on male threads (not required for port-side connections).
Perform pressure test at 1.5× system pressure after assembly.
| Property | Property Value |
|---|---|
| sku | EPKD6-4-01 |
