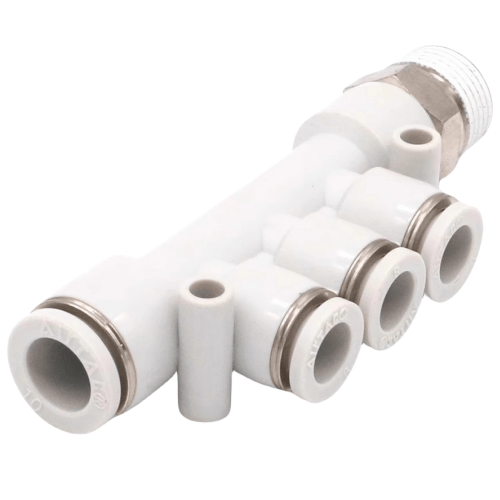

Airtac EPKD Threaded Five-way Fitting EPKD8-4-02
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
AirTAC EPKD Threaded Five-Way Union Tee EPKD8-4-02 Technical Details
- Model: EPKD8-4-02
- Thread Standard: PT1/8 (BSPP) female threads
- Material: Lead-free brass (CuZn39Pb0.5) with nickel plating
- Seal Material: NBR (Nitrile) rubber
- Max Pressure: 1.5 MPa (217 psi)
- Burst Pressure: ≥4.5 MPa
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Flow Capacity: 120 NL/min (at 0.5 MPa)
- Port Configuration: 5 ports (1 inlet, 4 outlets)
- Weight: 58g ±2g
- Dimensions: 32mm(L) × 28mm(W) × 26mm(H)
- Surface Roughness: Ra ≤3.2μm
- Compliance: RoHS 2.0, REACH
Precision-machined five-way pneumatic connector with self-aligning threads for leak-free distribution in multi-branch circuits. Features triple-sealing design (thread seal + O-ring + metal-to-metal contact) for high-pressure applications. The hexagonal body allows 360° adjustable orientation post-installation.
- Modular pneumatic control systems requiring flow division
- Robotic gripper pressure balancing networks
- CNC machine tool multi-axis actuator feeds
- Vacuum generator manifold assemblies
- Laboratory gas chromatography setups
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using crowfoot wrench.
Avoid over-tightening which may deform NBR seals.
Perform pressure test at 1.8 MPa before system commissioning.
| Property | Property Value |
|---|---|
| sku | EPKD8-4-02 |
