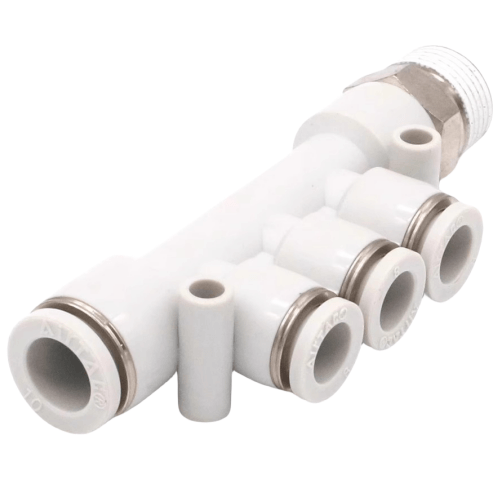

Airtac EPKD Threaded Five-way Fitting EPKD8-6-02
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
EPKD8-6-02
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Available in multiple models and specifications, designed for comprehensive compatibility with diversified pneumatic systems;
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
Installation protocol:
Apply Loctite 577 thread sealant on male threads (avoid Teflon tape).
Tighten sequentially in cross pattern to ensure even pressure distribution.
Perform 1.8 MPa pressure test for 3 minutes post-installation.
2. Optimized flow path geometry ensures unrestricted flow equivalent to tubing inner diameter, minimizing pressure drop;
3. Tool-free push-to-connect design enables rapid tubing installation/removal with vibration-resistant grip mechanism for sustained reliability;
4. Pre-applied thread sealant with M5 metric threads and integrated sealing washer guarantees hermetic sealing at threaded interfaces;
5. Nickel-plated brass construction delivers superior corrosion resistance and particulate contamination prevention, suitable for demanding industrial environments
AirTAC EPKD Threaded Five-Way Union Fitting EPKD8-6-02 Technical Details
- Model: EPKD8-6-02
- Type: Five-way manifold with G-thread ports
- Thread specifications:
- Main ports: G1/8 (ISO228 standard)
- Control ports: M5×0.8 internal thread
- Max working pressure: 1.5 MPa (217 PSI)
- Pressure range: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃ (non-condensing)
- Body material: Lead-free brass CW617N
- Seal material: HNBR (Hydrogenated Nitrile) O-rings
- Surface treatment: Electroless nickel plating (8-12μm)
- Weight: 53g ±2g
- Dimensions: 30mm(L) × 25mm(W) × 21mm(H)
- Torque specification: 1.5–2.0 N·m (mounting threads)
- Flow capacity: 650 NL/min (at 0.5 MPa)
High-density flow distribution block featuring corrosion-resistant construction and dual-layer sealing (metal-to-metal thread contact + elastic seal). Precision-machined with internal flow channels optimized for minimal pressure drop. Compatible with ISO 15407-1 pneumatic components.
Typical Configurations:
- Central manifold for multi-valve clusters in automation cells
- Pneumatic circuit branching in packaging machinery
- Vacuum/pressure switching systems
- Modular robotic end-effector air routing
Installation protocol:
Apply Loctite 577 thread sealant on male threads (avoid Teflon tape).
Tighten sequentially in cross pattern to ensure even pressure distribution.
Perform 1.8 MPa pressure test for 3 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | EPKD8-6-02 |
