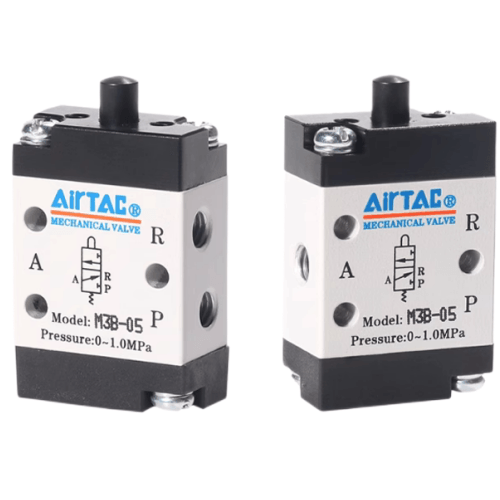

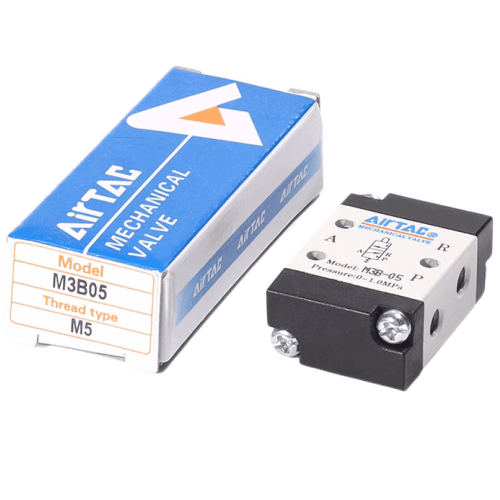

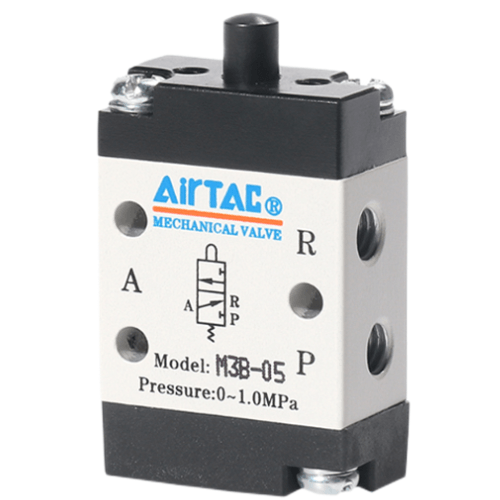

Airtac M3B Basic Type Mechanical Valve M3B21006G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The M3B, M3R, and M3L series utilize external mechanical actuation force, enabling position sensing or integration with limit switches;
3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature manual operation with diversified control head configurations for versatile application scenarios;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure effect). Internal sealing rings provide leak-tight performance and responsive switching;
5. Lubrication-free operation;
6. Multi-position mounting capability for flexible installation;
7. M3C, M3D, M3Y, M3R, and M3I series incorporate metallic control heads for extended service life and enhanced operational reliability.
Category: Mechanical Valves , Brand: AIRTAC , Series: M3B
AirTAC M3B Basic Series Mechanical Valve M3B21006G Technical Details
- Model Code: M3B21006G
- Valve Type: 2-position 5-way, spring return
- Port Configuration: PT1/4 (M5 optional)
- Operating Pressure Range: 0.15–0.8 MPa (21.7–116 PSI)
- Temperature Tolerance: -20℃ to 80℃ (-4°F to 176°F)
- Seal Material: Oil-resistant NBR (Nitrile Rubber)
- Body Material: Anodized aluminum alloy
- Actuation Method: Mechanical lever operation
- Response Time: ≤0.1 second (full stroke)
- Protection Class: IP54 (dust protected & water splashed)
- Weight: 320g ±5g
- Dimensions: 64mm(L) × 50mm(W) × 78mm(H)
- Port Thread Depth: 10mm (minimum engagement)
- Flow Capacity: 750 Nl/min (Cv=1.2)
- Lever Force: 3.5N max (manual override)
Rugged mechanical valve designed for manual override operations in pneumatic systems. Features hardened steel lever mechanism with wear-compensation design, making it ideal for environments requiring frequent manual intervention or emergency controls. The aluminum body with double-layer anodizing ensures corrosion resistance in humid conditions.
- Production line emergency stop systems
- Automotive tire assembly machinery
- Plastic injection molding clamp controls
- Packaging machine safety overrides
- Material handling system manual modes
Installation Guidelines:
Requires 5-40μm filtered compressed air. Lubricate lever pivot point monthly with ISO VG32 hydraulic oil.
Mounting orientation must keep lever accessible - minimum 120mm clearance for full lever stroke.
Critical Note:
Do not use silicone-based lubricants. Avoid side-loading forces on lever during operation.
For vertical mounting, install exhaust port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | M3B21006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
