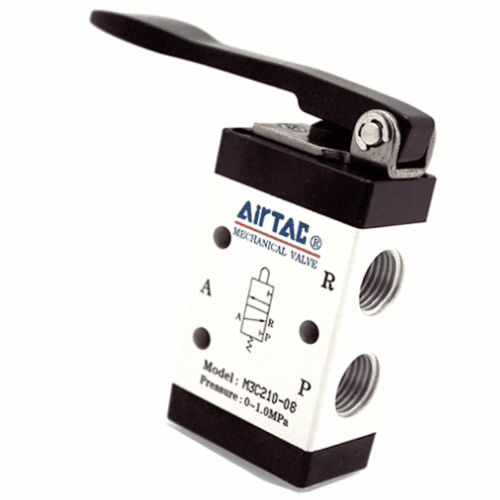

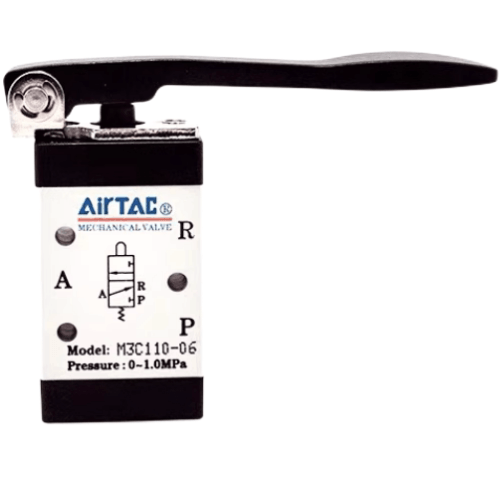

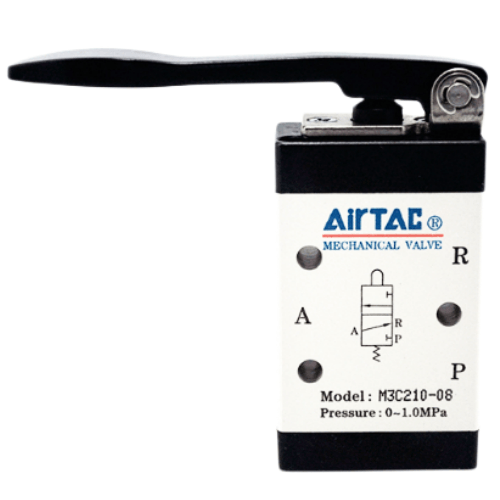

Airtac M3C Long Handle Type Mechanical Valve M3C11006G
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C Long Handle Mechanical Valve M3C11006G Technical Details
- Model: M3C11006G
- Type: 3-position, 5-way manual mechanical valve (center closed)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Operating temperature: -5℃ to 80℃ (with NBR seals)
- Flow capacity: 850 L/min (ANR) at 0.5 MPa
- Handle torque: ≤1.2 N·m
- Body material: Aluminum alloy (anodized surface)
- Spool type: Precision ground stainless steel
- Weight: 480±10g
- Dimensions: 105mm(L) × 52mm(W) × 145mm(H)
- Mounting: Direct piping or subplate (ISO 15407-1 compatible)
- Protection rating: IP54 (standard), IP67 optional
Heavy-duty manual override valve featuring ergonomic 120mm extended handle for precise control in industrial environments. The dual-pallet structure ensures smooth spool movement even under high cycling conditions. Integrated locking mechanism prevents accidental position changes during operation.
- Production line emergency stop systems
- Hydraulic press mode selection
- Material handling equipment manual override
- Plastic injection molding machine safety circuits
- Pneumatic system maintenance bypass operations
Installation guidelines:
Mount with handle positioned at 30° downward angle for optimal operator access.
Apply thread sealant on NPT ports (not required for G-thread).
Perform monthly lubrication via built-in grease nipple (use ISO VG15 pneumatic oil).
| Property | Property Value |
|---|---|
| sku | M3C11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
