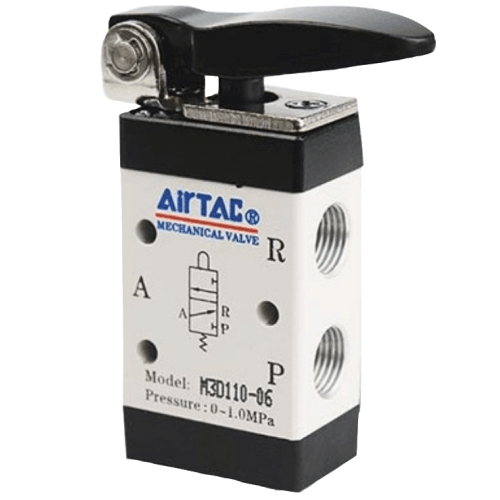

Airtac M3D Short Lever Type Mechanical Valve M3D21008
1. Exhaust ports integrated into the body facilitate silencer installation, reducing noise emissions and environmental contamination;
2. M3B, M3R, and M3L series feature external force-driven actuation mechanisms, compatible with position detection systems or limit switch applications;
3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series incorporate manual override mechanisms with multi-configuration actuator heads for versatile operational requirements;
4. Spool-type construction ensures consistent actuation force independent of working pressure (backpressure-resistant design), enhanced by internal ring seals for leak-tight performance and responsive directional switching;
5. Maintenance-free operation without lubrication requirements;
6. Multi-position mounting capability enables flexible installation configurations;
7. M3C, M3D, M3Y, M3R, and M3I series employ metal actuator heads for extended service life and enhanced operational reliability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M3D
AirTAC M3D Short Handle Mechanical Valve M3D21008 Technical Specifications
- Model: M3D21008
- Type: 3-position, 5-way (closed center)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Actuation: Manual lever with detent mechanism
- Weight: 320g ±5g (including accessories)
- Dimensions: 58mm(L) × 36mm(W) × 72mm(H)
- Body material: Anodized aluminum alloy (AL6063)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Flow capacity: 750 NL/min (ANR)
- Mounting: Direct piping or sub-base (ISO 15407-1 compatible)
- Leakage: <0.1 cm³/min under 0.5 MPa
- Cycle life: 1,000,000 operations minimum
Compact manual override valve with tactile positioning feedback, featuring dual-color position indicator (red/green) for visual status confirmation. The ergonomic 25mm short handle requires only 45° rotation angle for full operation, designed for confined spaces. Includes built-in locking pin for safety maintenance.
- Semiconductor wafer handling robots
- Automated test equipment emergency stops
- Food processing line manual override stations
- Electric vehicle battery assembly jigs
- Pharmaceutical cleanroom actuators
Installation guidelines:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
Maximum lateral handle force 8N. Compatible with ISO 8573-1 Class 3 compressed air.
Not recommended for vacuum applications. Avoid silicone-based lubricants
which may degrade HNBR seals. Maintain 20mm clearance around handle arc.
| Property | Property Value |
|---|---|
| sku | M3D21008 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
