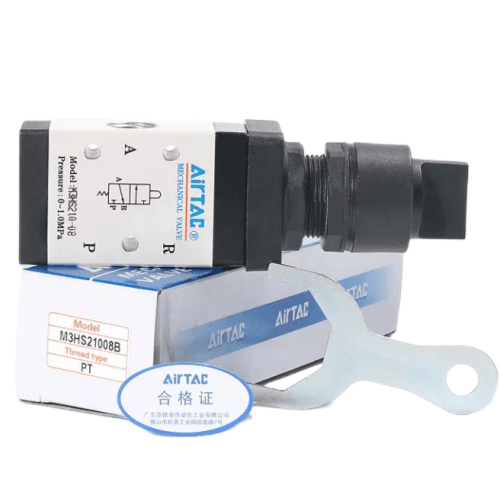

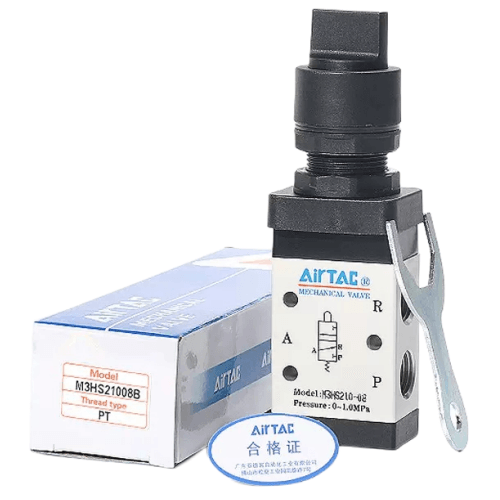

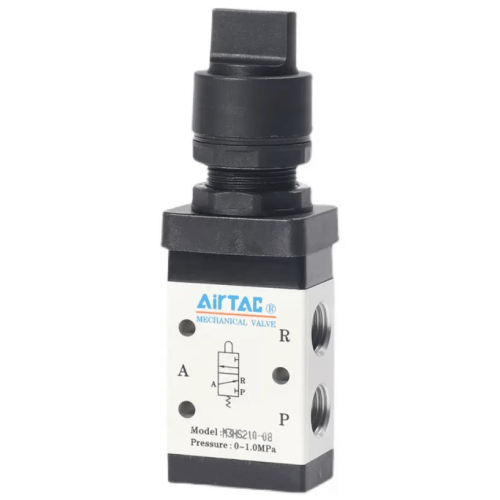

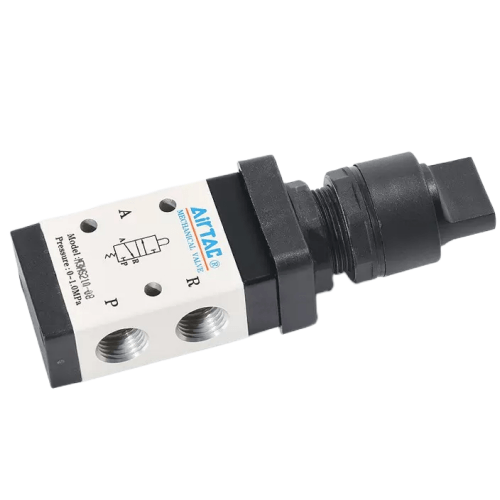

Airtac M3HS Selector Mechanical Valve M3HS21006R
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3HS21006R
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Exhaust ports integrated into the main body facilitate silencer installation for noise reduction and pollution control;
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
Installation note:
Lubricate shaft monthly with ISO VG32 pneumatic oil.
Ensure exhaust ports face downward when vertical mounting.
Maximum lateral force on handle: 30N.
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21006R Selector Mechanical Valve Specifications
- Model: M3HS21006R
- Type: 3-position selector valve (mechanical detent)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.2–1.0 MPa
- Actuation force: ≤15N manual operation
- Flow capacity: 750 l/min (ANR)
- Weight: 280g ±5g
- Dimensions: 58mm(L) × 42mm(W) × 76mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (hydrogenated nitrile)
- Temperature range: -10℃ to 80℃
- Vibration resistance: ≤55Hz/1.5mm amplitude
- Mounting options: Panel/side mount with M4 screws
Manual selector valve with positive center position and tactile feedback, featuring dual exhaust paths for precise directional control. The hardened steel shaft and wear-resistant seals ensure 500,000+ cycle durability. Includes dust-resistant boot cover (IP54 rating when installed).
Typical Applications:
- Machine tool mode selection systems
- Pneumatic circuit configuration switching
- Safety interlock override controls
- Material handling equipment direction selectors
- Test bench pneumatic routing
Installation note:
Lubricate shaft monthly with ISO VG32 pneumatic oil.
Ensure exhaust ports face downward when vertical mounting.
Maximum lateral force on handle: 30N.
| Property | Property Value |
|---|---|
| sku | M3HS21006R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
