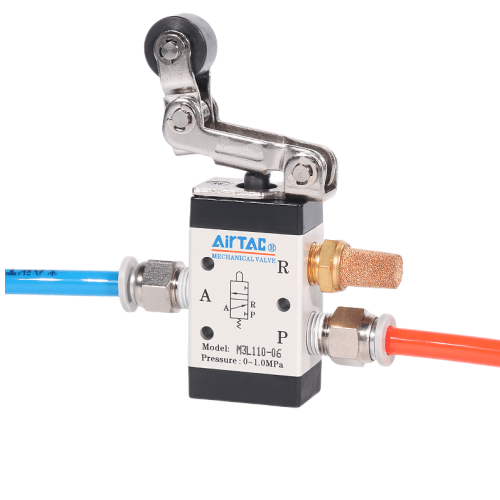

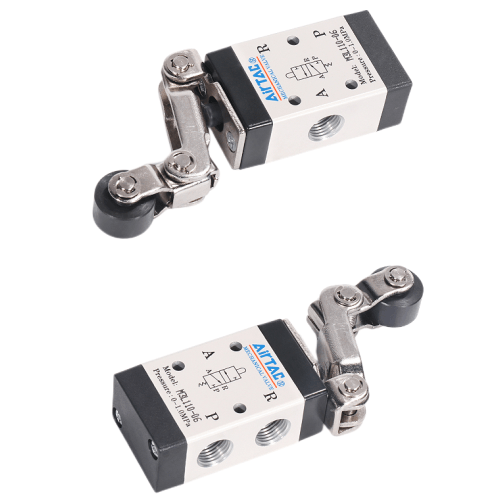

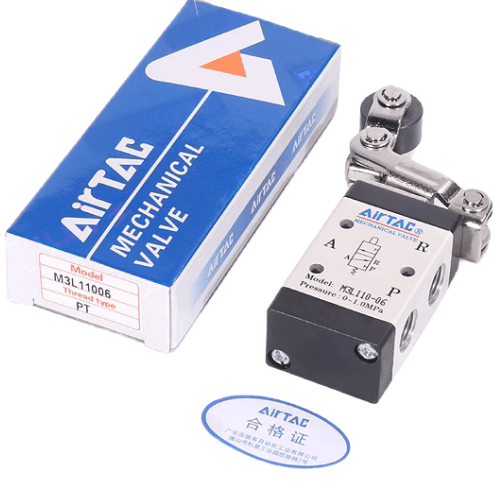

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L05-P14A
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L05-P14A Unidirectional Roller Lever Mechanical Valve Specifications
- Model: M3L05-P14A
- Type: 3/2-way normally closed (mechanically actuated)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Lever type: Stainless steel roller lever with 5mm stroke
- Body material: Anodized aluminum alloy
- Seal material: High-wear NBR rubber
- Temperature range: -10℃ to 80℃
- Actuation force: 1.5N ±0.3N
- Response time: ≤50ms
- Protection rating: IP67
- Weight: 98g ±3g
- Dimensions: 52mm(L) × 25mm(W) × 38mm(H)
Precision roller-lever valve designed for repeatable mechanical actuation in harsh environments. Features corrosion-resistant construction with a wear-compensating roller mechanism that reduces surface abrasion during repeated triggering. The optimized flow path ensures 450L/min flow capacity at 0.5MPa.
- Conveyor belt object detection systems
- Automated packaging machine position feedback
- Safety door interlocks in press machinery
- Cartesian robot end effector positioning
- Textile machinery thread break detection
Installation note: Align roller axis perpendicular to actuation direction. Lubricate pivot point with ISO VG32 hydraulic oil every 500,000 cycles. Maximum side load on lever: 0.8N.
| Property | Property Value |
|---|---|
| sku | M3L05-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
