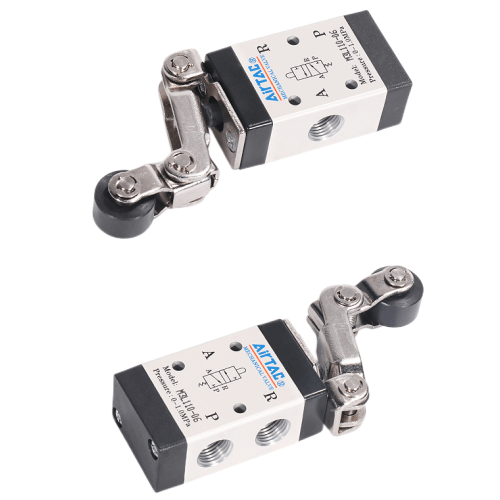

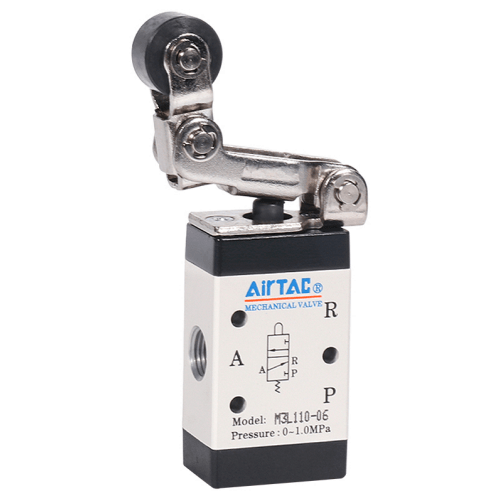

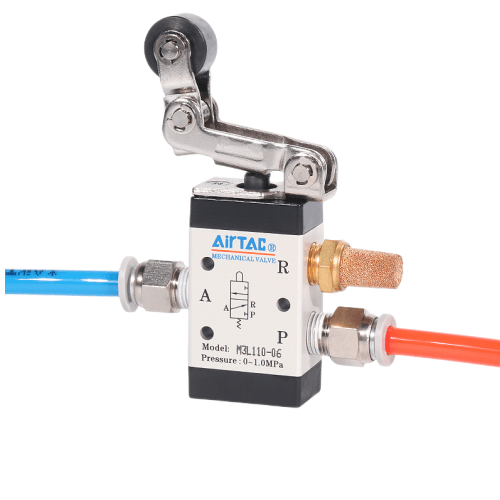

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L210-P14A
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L210-P14A Single Direction Roller Lever Mechanical Valve Specifications
- Model: M3L210-P14A
- Type: Single Direction Roller Lever Type (3/2-way)
- Port size: PT1/4 (G1/4 thread)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Actuation force: 2.5N±0.5N at lever tip
- Temperature range: -5℃ to 80℃ (operating fluid)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Weight: 220g ±5g
- Dimensions: 60mm(L) × 25mm(W) × 30mm(H)
- Protection rating: IP67 (dust/water resistant)
- Repeat accuracy: ±0.5mm positioning
- Lever stroke: 5mm ±0.3mm
- Response time: ≤0.5s (full stroke actuation)
- Mounting orientation: Any (vertical/horizontal)
Manual reset mechanical valve with roller-end lever for precise position detection in harsh environments. Features wear-resistant chromium-plated steel roller and anti-vibration lock nut design. Includes built-in flow control with adjustable screw (0.3-6 L/min). Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Conveyor belt position verification systems
- Carton box positioning in packaging lines
- Robotic arm end-effector alignment
- Automated door safety interlocks
- Material handling equipment limit switches
Installation note:
Align roller movement direction with machine motion axis (±2° tolerance).
Use M3x8mm screws with 0.5Nm torque for mounting. Lubricate roller bearing
every 500,000 cycles using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | M3L210-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
