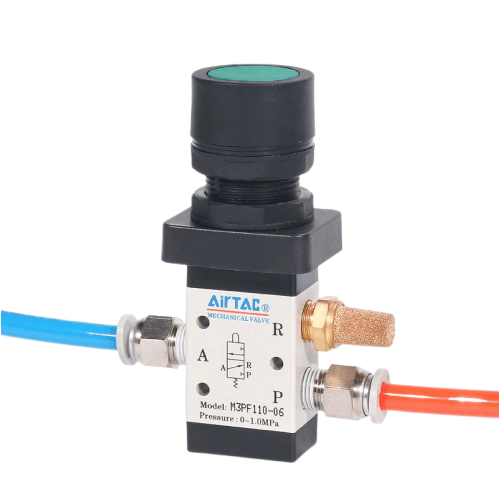

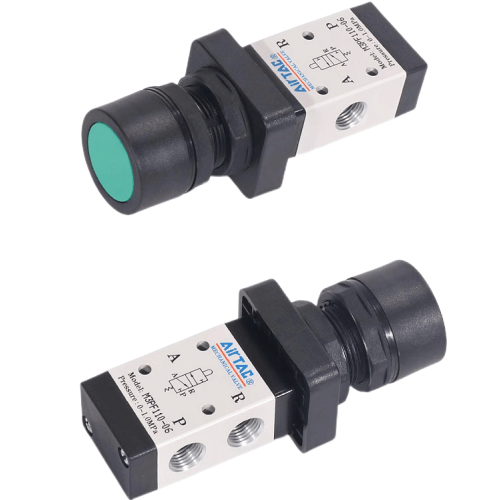

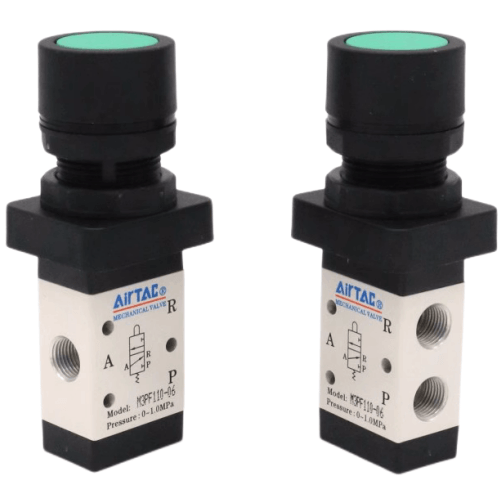

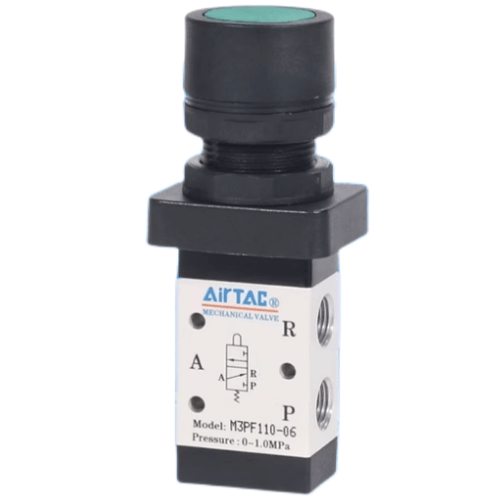

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF11006B
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF11006B Flat-head Push Button Mechanical Valve Specifications
- Model: M3PF11006B
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Operating force: 25N ±5N (button actuation)
- Flow capacity: 450 L/min (ANR)
- Weight: 180g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 38mm(H)
- Body material: Anodized aluminum alloy
- Seal material: FKM fluorocarbon (standard)/NBR optional
- Temperature range: -10℃ to 80℃ (FKM seals)
- Response time: Instant mechanical actuation
- Protection rating: IP67 (dust/water resistant)
- Mounting: Direct panel mounting with M5 screws
Robust mechanical valve featuring a low-profile flat button design for ergonomic operation in confined spaces. The hardened stainless steel spring mechanism ensures 500,000+ cycles durability. Includes anti-vibration lock mechanism to prevent accidental actuation. Compatible with ISO 15407-1 standards for pneumatic systems.
- Emergency stop systems in assembly lines
- Manual override in automated machinery
- Food processing equipment (FDA-compliant seal options)
- Mobile hydraulic control stations
- Test bench pneumatic controls
Installation note: Requires 2mm thick mounting panel. Apply thread sealant on ports.
For vertical mounting, position button facing downward to prevent debris accumulation.
Lubricate every 6 months with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | M3PF11006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
