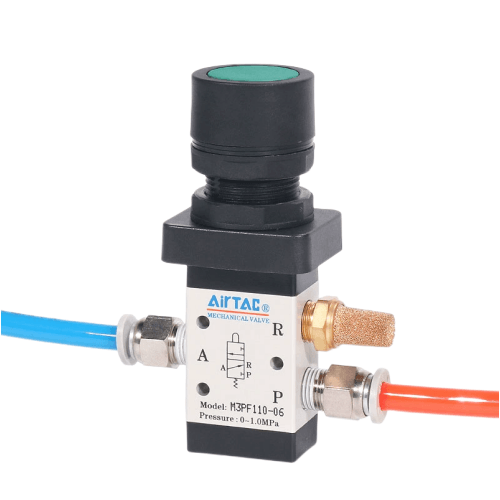

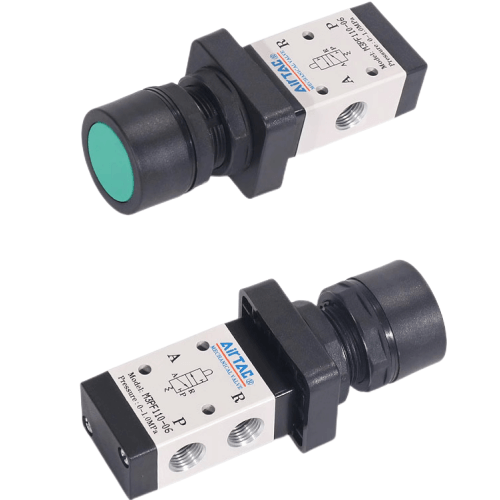

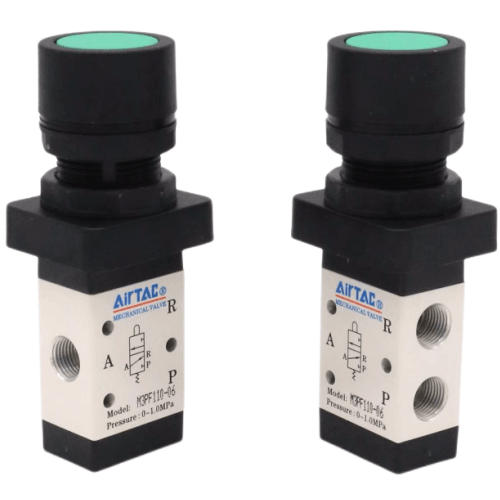

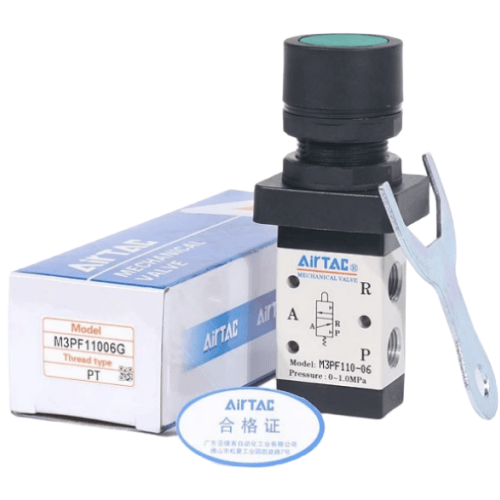

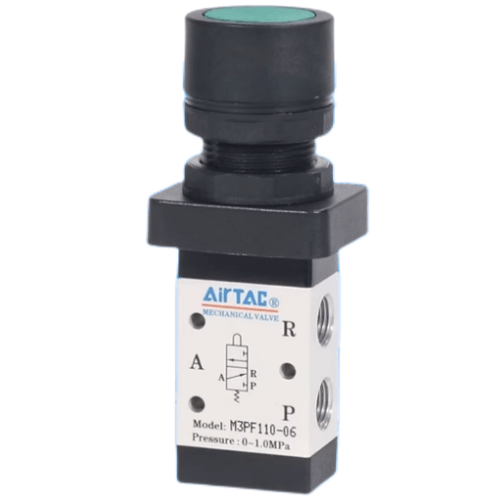

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF11006GG
$20.90
Regular price
$28.40
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3PF11006GG
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
Installation guidelines:
Apply thread sealant only on male ports (PTFE tape not recommended).
Maximum 5° angular deviation permitted during panel mounting.
Perform monthly button stroke checks under pressure.
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF Flat-Head Push Button Mechanical Valve M3PF11006GG Technical Details
- Model: M3PF11006GG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 350 NL/min (at 0.5 MPa)
- Actuation force: 2.5N ±0.5N (button press)
- Mechanical life: ≥500,000 cycles
- Seal material: FKM fluorocarbon rubber (Viton® equivalent)
- Body material: Anodized aluminum alloy (black oxidation treatment)
- Temperature range: -10℃ to 80℃ (with silicone seals optional for -20℃)
- Protection rating: IP67 (dust/water resistant)
- Weight: 185g ±5g
- Dimensions: 48mm(L) × 34mm(W) × 25.5mm(H)
- Mounting: Direct panel mounting with M3 screws (2.5mm depth)
- Port orientation: Axial flow design (in-line configuration)
Industrial-grade manual override valve featuring tactile feedback and positive lock mechanism. The chrome-plated brass button head provides corrosion resistance in humid environments. Integrated O-ring groove allows direct panel mounting without additional seals. Requires 25μm filtered compressed air (ISO 8573-1 class 4).
Common Applications:
- Emergency stop override in automated assembly lines
- Manual control of pneumatic clamps in CNC machinery
- Process interruption in semiconductor manufacturing equipment
- Safety bypass in food packaging systems (FDA-compliant seals available)
- Mobile hydraulic service units maintenance override
Installation guidelines:
Apply thread sealant only on male ports (PTFE tape not recommended).
Maximum 5° angular deviation permitted during panel mounting.
Perform monthly button stroke checks under pressure.
Performance Note:
Achieves full flow at 0.3 MPa with 3mm button stroke.
Built-in dust wiper prevents particulate ingress during repeated actuations.
Not recommended for vacuum applications or pulsating air systems.
| Property | Property Value |
|---|---|
| sku | M3PF11006GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
