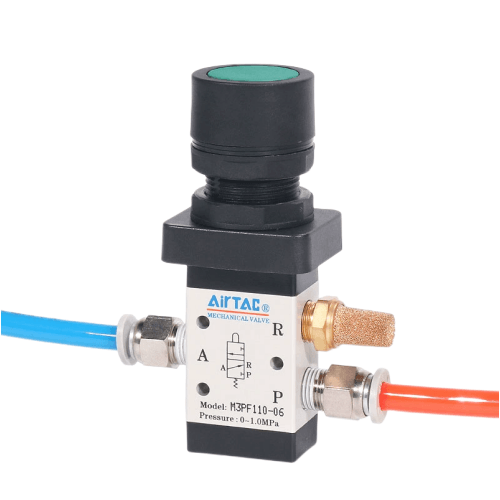

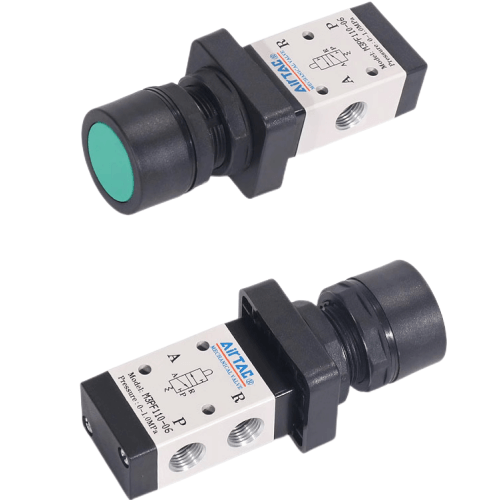

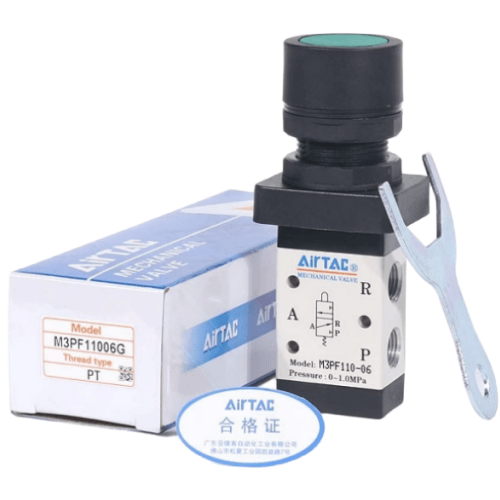

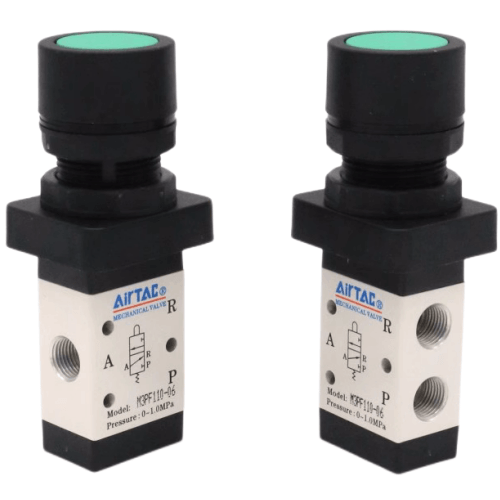

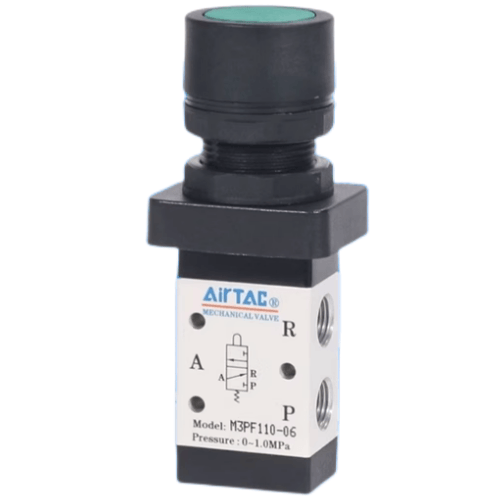

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF11006R
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF11006R Flat-Head Push Button Mechanical Valve Technical Details
- Model: M3PF11006R
- Type: 3/2-way normally closed manual reset valve
- Port size: PT1/8 (G1/8 optional)
- Thread standard: Metric/ISO parallel
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Max flow rate: 350 NL/min (ANR)
- Actuation force: 2.5–3.2 N
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (-20℃ to 80℃)
- Button stroke: 3.5±0.3 mm
- Mechanical life: ≥500,000 cycles
- Weight: 118±2g
- Dimensions: 40mm(L) × 25mm(W) × 35mm(H)
- Mounting options: Panel mount with M12×1.0 locknut
- Compliance: RoHS 2.0 compliant
Manual override valve with tactile feedback, featuring a corrosion-resistant brass body and precision-machined internal components. The mushroom-shaped button meets ISO 13850 emergency stop standards with 40mm diameter contact surface. Requires 5-15μm filtered compressed air (lubricated or non-lubricated).
- Emergency stop circuits in packaging machinery
- Manual mode override in automotive assembly jigs
- Safety interlocks for press brake systems
- Pneumatic system debugging/troubleshooting stations
- Educational training equipment for mechatronics
Installation guidelines:
Mount with button axis perpendicular to operator's approach direction.
Apply 0.5–0.8 N·m torque during installation. Test full stroke engagement
monthly. Not suitable for vacuum applications.
| Property | Property Value |
|---|---|
| sku | M3PF11006R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
