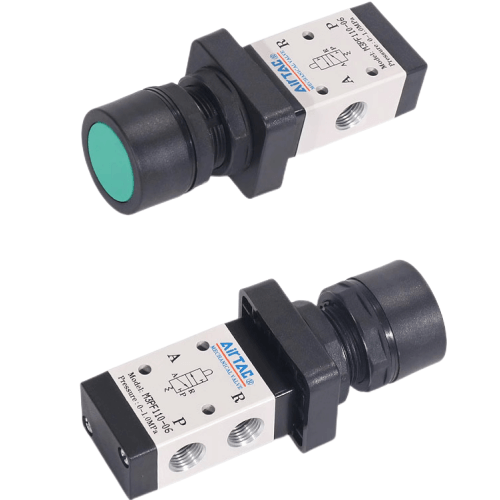

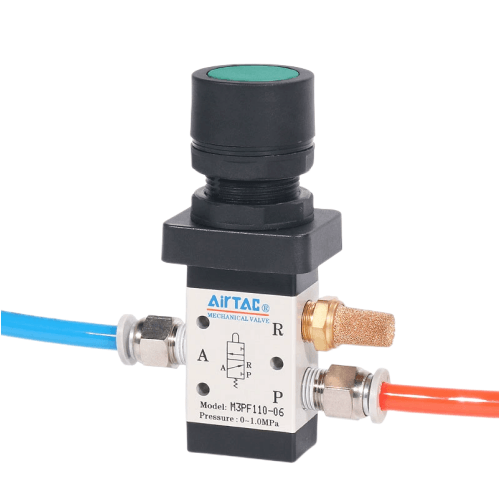

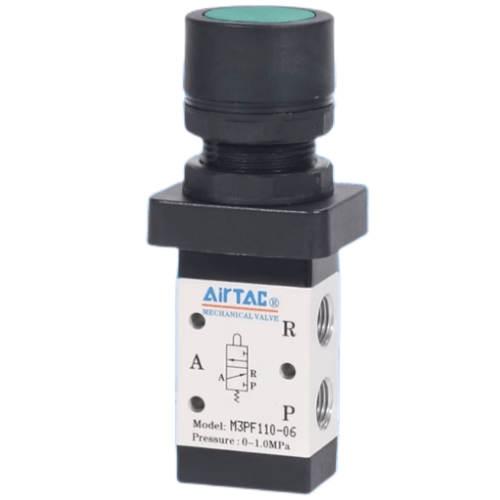

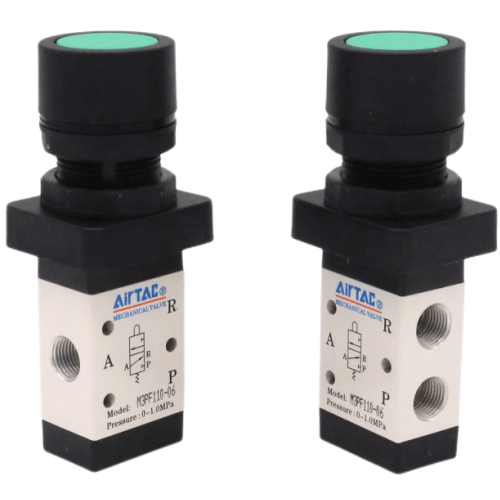

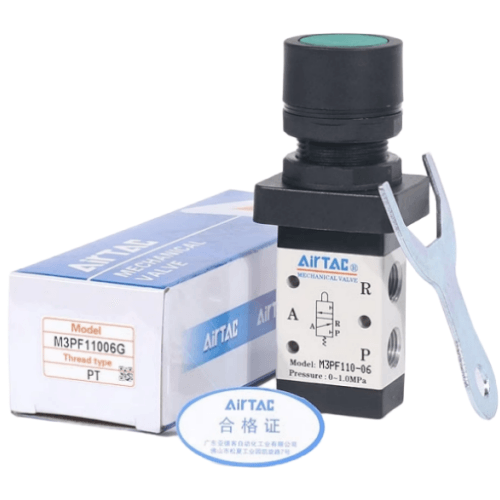

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF11006RG
$20.90
Regular price
$28.40
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3PF11006RG
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
Installation note:
Apply thread sealant on male ports (PT threads). Maximum recommended
actuation frequency: 60 cycles/minute. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF11006RG Flat-Head Push Button Style Mechanical Valve Specifications
- Model: M3PF11006RG
- Type: 3/2-way manual reset mechanical valve (push-pull operation)
- Port size: PT1/4 (G1/4 equivalent)
- Thread standard: BSPP (parallel thread)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 800 NL/min (ANR)
- Actuation force: 3.5–4.5 N
- Button stroke: 4.2±0.5 mm
- Body material: Aluminum alloy with hard anodizing
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 60℃ (operating fluid)
- Weight: 215±5g
- Dimensions: 50mm(L) × 30mm(W) × 40mm(H)
- Mounting: Direct panel mounting with M5 screws
- IP rating: IP54 (dust protected, splash water resistant)
Robust manual override valve featuring tactile feedback and anti-vibration lock mechanism. The red anodized button head provides visual status indication (protruded=activated). Includes built-in silencer and dust cap. Compatible with ISO 15407-1 standard pneumatic systems.
Typical Applications:
- Emergency stop override in automated assembly lines
- Manual mode activation for CNC machine tool chucks
- Pneumatic fixture control in welding stations
- Safety circuit testing in semiconductor handling equipment
- Process interruption in food packaging machinery
Installation note:
Apply thread sealant on male ports (PT threads). Maximum recommended
actuation frequency: 60 cycles/minute. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | M3PF11006RG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
