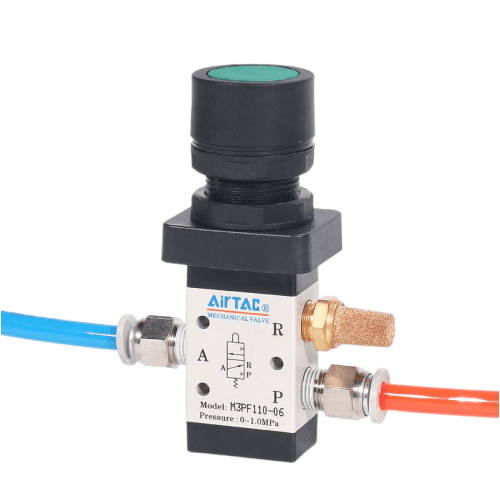

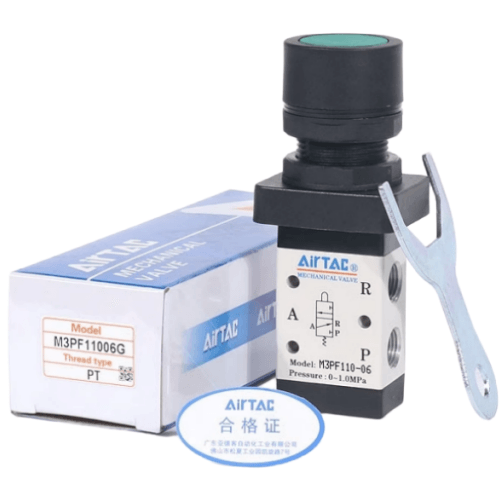

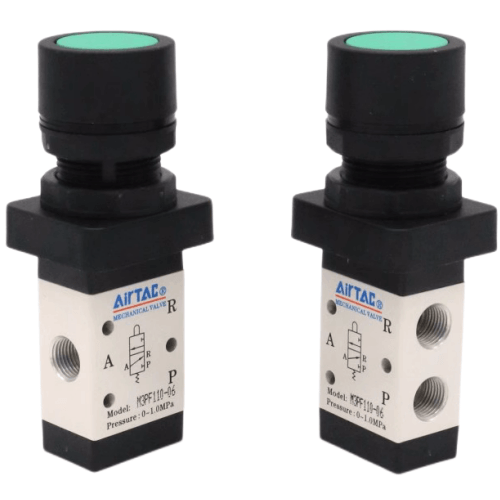

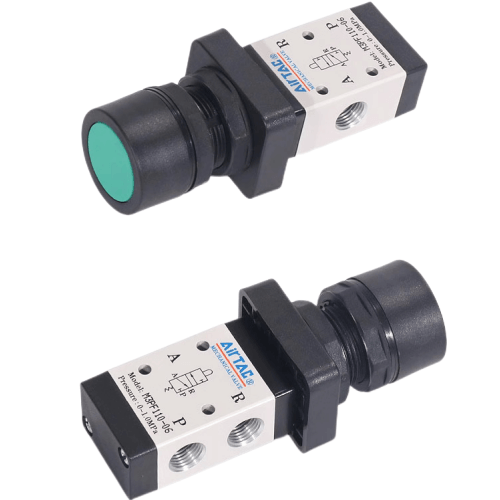

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21006BG
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21006BG Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21006BG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Operating force: 30N ±5N
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (oil/heat resistant)
- Temperature range: -10℃ to 80℃
- Actuation type: Mechanical latching mechanism
- Reset method: Manual twist-release
- Weight: 220g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 68mm(H)
- Port thread depth: 9mm
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust mechanical valve featuring a fail-safe latching mechanism with tactile feedback. The flat-head design prevents accidental actuation while enabling glove-friendly operation. Features dual-stage sealing with wear compensation, optimized for high-cycle applications. Compatible with ISO 15407-1 standard pneumatic systems.
- Emergency stop systems in assembly lines
- Manual override in automated packaging machinery
- Safety interlocks for press equipment
- Mobile hydraulic control panels
- Test bench pneumatic sequencing
Installation note:
Requires 2Nm torque for port connections. For horizontal mounting,
ensure button axis alignment with operator's natural hand position.
Lubricate pivot points every 50,000 cycles using silicone grease.
| Property | Property Value |
|---|---|
| sku | M3PF21006BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
