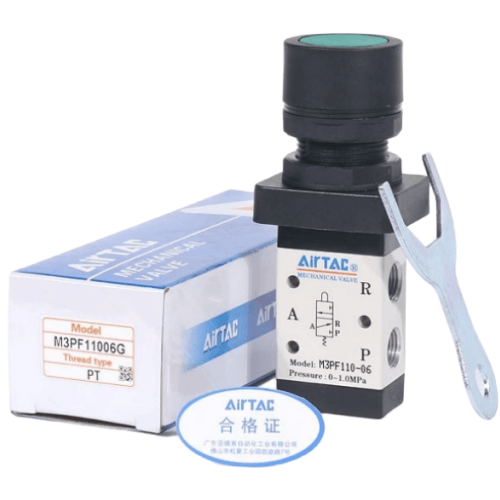

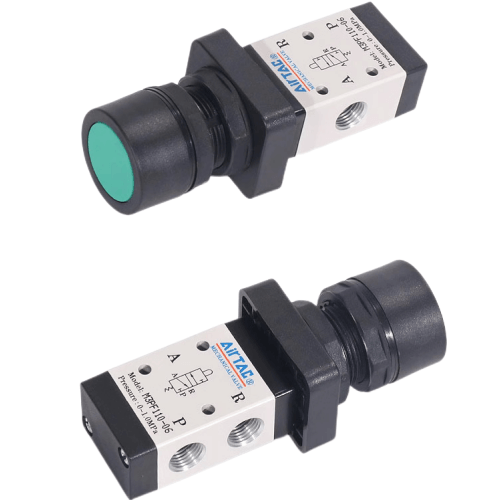

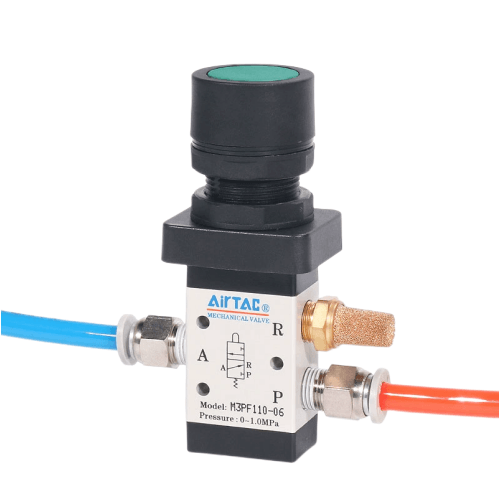

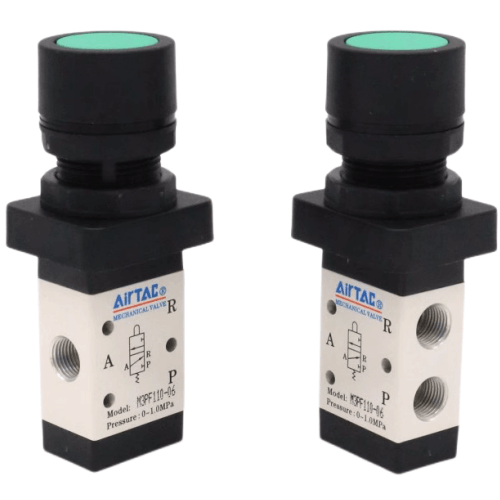

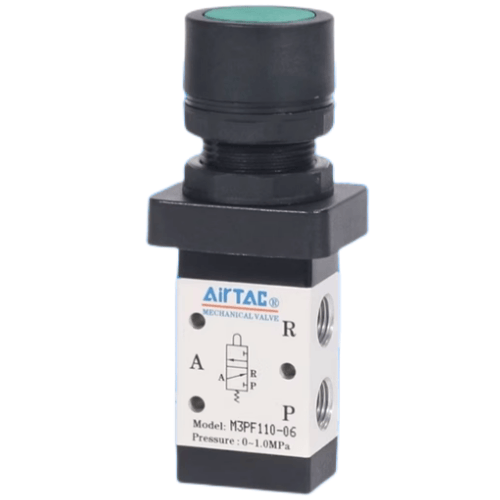

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21006G
$26.74
Regular price
$34.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3PF21006G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
Installation note:
Ensure button travel clearance (min. 15mm behind panel). Apply thread sealant
on port connections (PT threads only). Lubricate O-rings with silicone grease
during maintenance.
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21006G Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21006G
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Actuation force: 2.5-3.5N (button press)
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -10℃ to 80℃ (with intermittent peaks at 120℃)
- Flow rate: 650 l/min (ANR)
- Weight: 280g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 68mm(H)
- Mounting: Direct panel mounting (6mm panel thickness max)
- Cycle life: ≥500,000 operations
- Protection rating: IP67 (dust/water resistant)
Manual override valve with ergonomic flat-head design for flush panel integration. Features dual-color status indicator (green=actuated, black=neutral) and anti-rotation collar for precise alignment. Requires 25μm filtered compressed air with ISO 8573-1:2010 Class 3 air quality.
Typical Applications:
- Emergency stop systems in production lines
- Manual control stations for pneumatic test benches
- Food processing equipment with frequent cleaning cycles
- Mobile hydraulic power units in construction machinery
- Safety interlocks in automated packaging systems
Installation note:
Ensure button travel clearance (min. 15mm behind panel). Apply thread sealant
on port connections (PT threads only). Lubricate O-rings with silicone grease
during maintenance.
| Property | Property Value |
|---|---|
| sku | M3PF21006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
