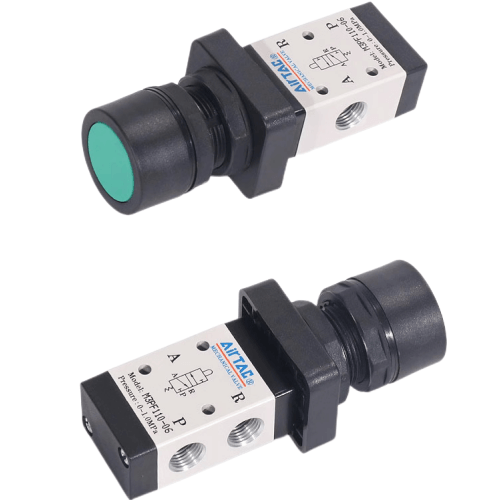

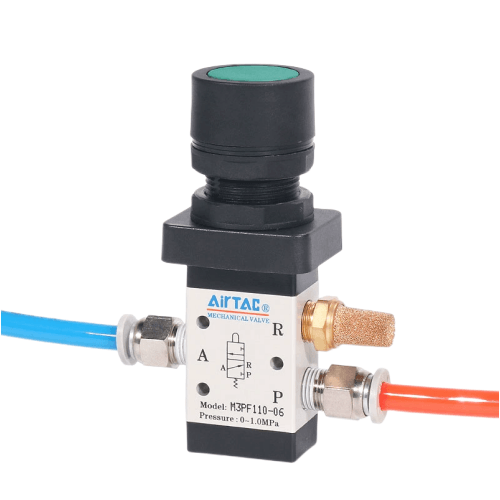

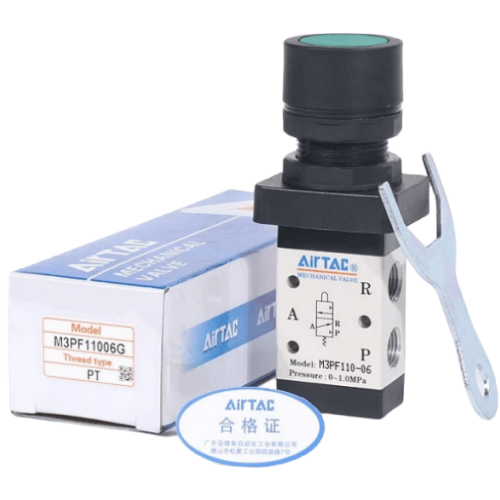

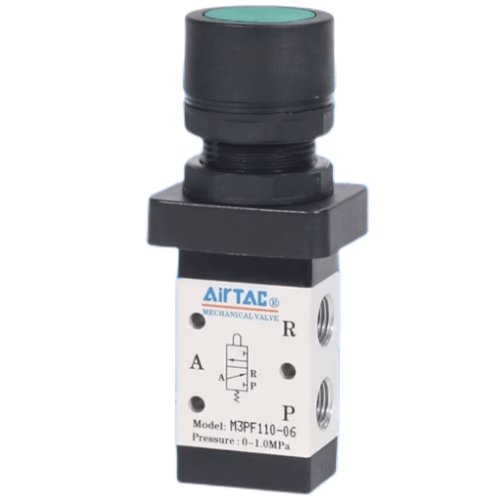

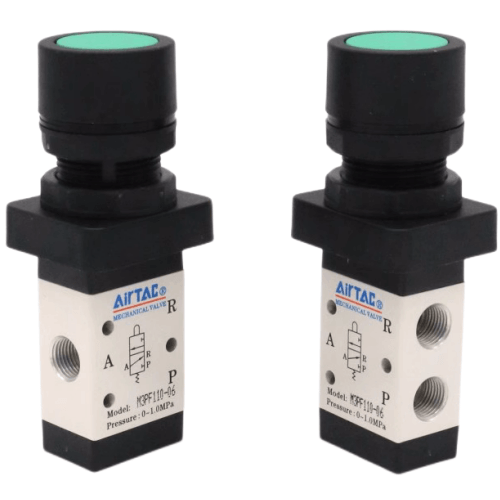

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21006R
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21006R Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21006R
- Type: 3/2-way normally closed (manual reset)
- Actuation: Push-pull mechanical operation
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–1.0 MPa
- Max flow rate: 650 L/min (ANR)
- Operating temperature: -5℃ to 60℃
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (oil & heat resistant)
- Button stroke: 5mm ±0.3mm
- Operating force: ≤15N
- Weight: 182g ±3g
- Dimensions: 52mm(L) × 38mm(W) × 62mm(H)
- Mounting: Direct panel mounting (Ø16mm cutout required)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve with tactile feedback, featuring a low-profile design for control panel integration. The chrome-plated brass button shaft ensures smooth operation even in high-humidity environments. Includes dual O-ring seals for redundant leak prevention. Compatible with ISO 15407-1 standards.
- Emergency stop systems in automated production lines
- Manual override for pneumatic safety circuits
- Test bench pressure regulation controls
- Food processing equipment (HNBR compatible with food-grade lubricants)
- Mobile hydraulic system access points
Installation note:
Apply silicone grease (ASG-46) to button shaft during maintenance.
Maximum panel thickness: 5mm. For vertical mounting only - horizontal
installation may affect tactile feedback consistency.
| Property | Property Value |
|---|---|
| sku | M3PF21006R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
