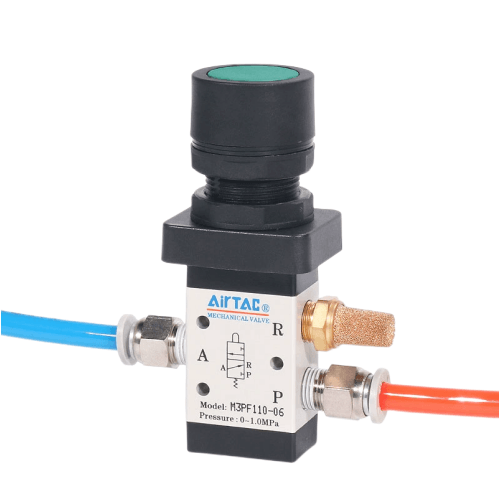

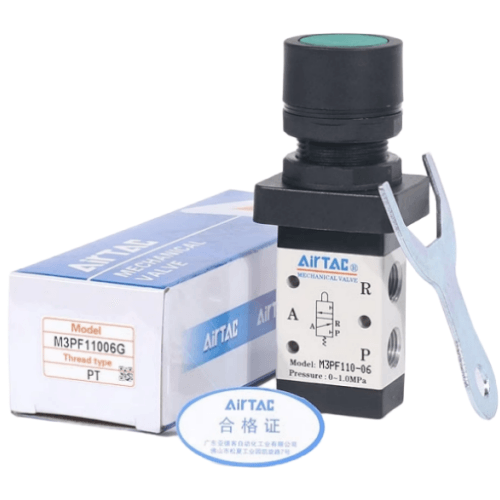

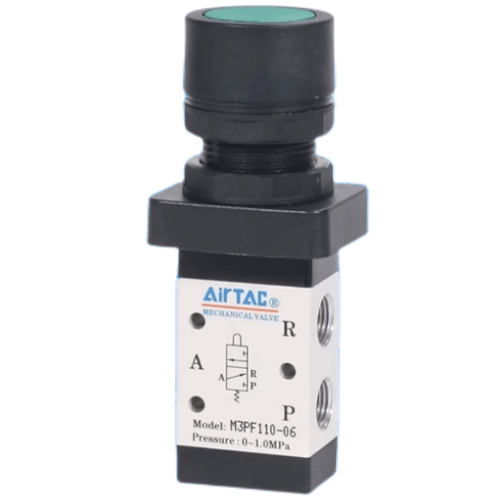

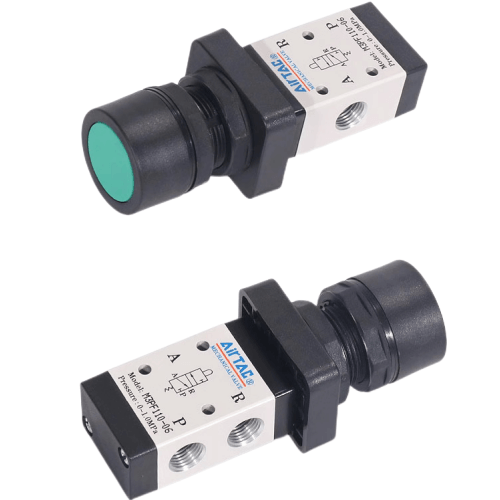

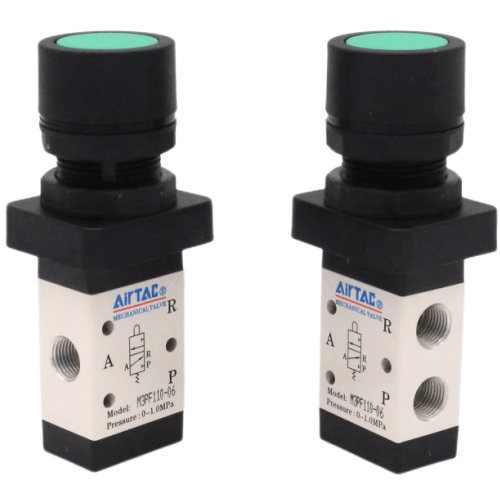

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21008B
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21008B Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21008B
- Type: 3/2-way normally closed push-button mechanical valve
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Flow capacity: 750 l/min (ANR)
- Body material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Operating temperature: -5℃ to 70℃
- Actuation force: 4.5N ±1N
- Response time: ≤50ms
- Weight: 220g ±5g
- Dimensions: 58mm(L) × 36mm(W) × 42mm(H)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Compliance: ISO 15407-1 standard
Manual override valve with ergonomic flat-head design for repetitive operation comfort. Features dual-color position indicator (green/red) and positive tactile feedback. The chrome-plated brass construction ensures corrosion resistance in humid environments. Requires 5μm filtered compressed air with lubrication (ISO VG32 recommended).
- Emergency stop systems in assembly lines
- Manual mode override in automated machinery
- Pneumatic fixture clamping controls
- Educational training equipment
- Food processing manual override stations
Installation note:
Mount using M4 screws with vibration-proof washers.
Maintain minimum 15mm clearance below actuator for finger operation.
Perform monthly lubrication through designated grease nipple (AS-2 grease recommended).
| Property | Property Value |
|---|---|
| sku | M3PF21008B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
