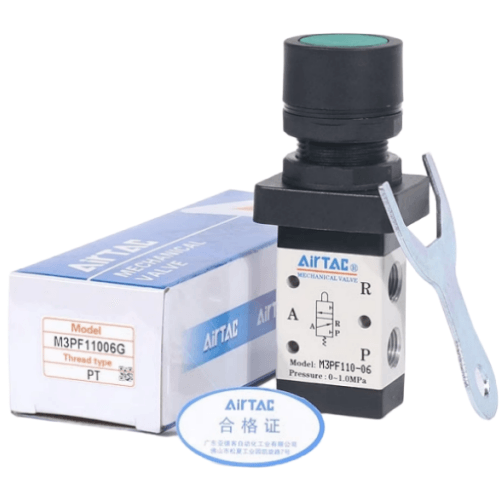

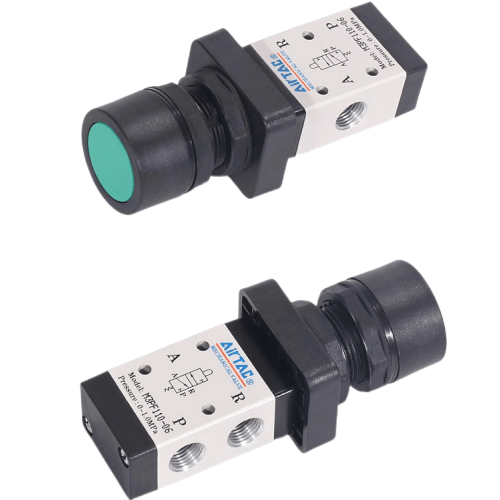

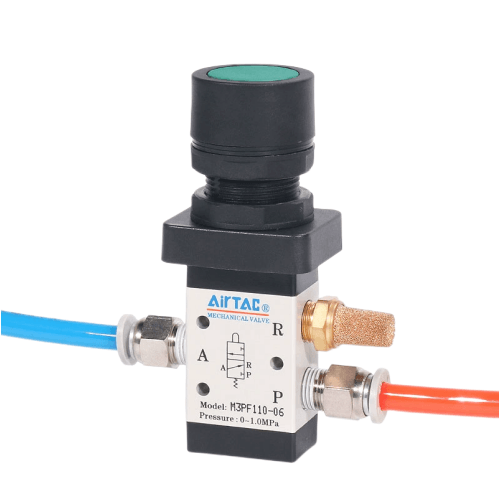

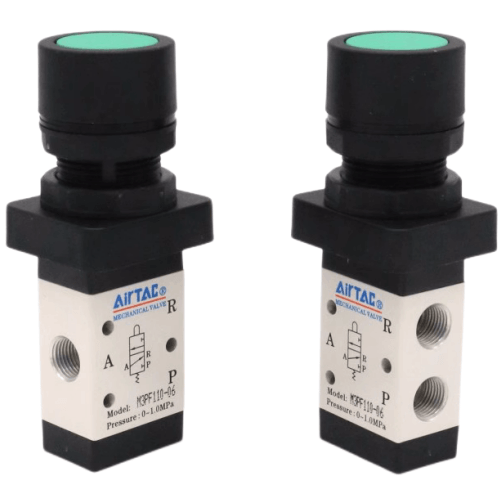

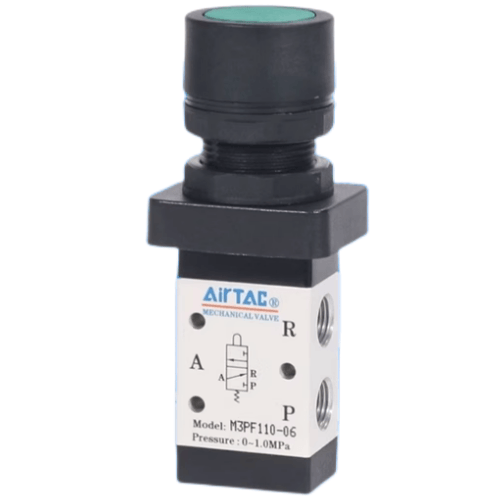

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21008G
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21008G Flat-head Push Button Mechanical Valve Specifications
- Model: M3PF21008G
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread)
- Operating pressure: 0.05–0.8 MPa
- Actuation force: 2.5N ±0.5N
- Body material: Nickel-plated brass
- Seal material: FKM fluorocarbon rubber
- Temperature range: -10℃ to 80℃
- Weight: 85g ±3g
- Dimensions: 30mm(L) × 30mm(W) × 38mm(H)
- Response time: ≤50ms
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Compact manual override valve with tactile feedback, featuring a low-profile 4.5mm button protrusion for space-constrained installations. The dual-spring mechanism ensures positive reset action, while the corrosion-resistant construction withstands humid environments. Includes built-in silencer for noise reduction (≤65dB).
- Emergency stop systems in packaging machinery
- Manual override for automated assembly lines
- Safety interlocks in elevator control panels
- Medical bed positioning controls
- Laboratory equipment manual venting
Installation guidelines:
Mount with button axis perpendicular to gravity direction.
Use ISO 8573-1 class 3.4.2 compressed air. Lubricate pivot points
with MIL-PRF-6085 grease every 6 months in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | M3PF21008G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
