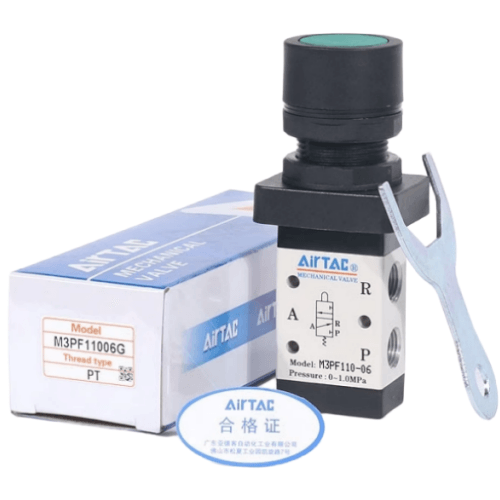

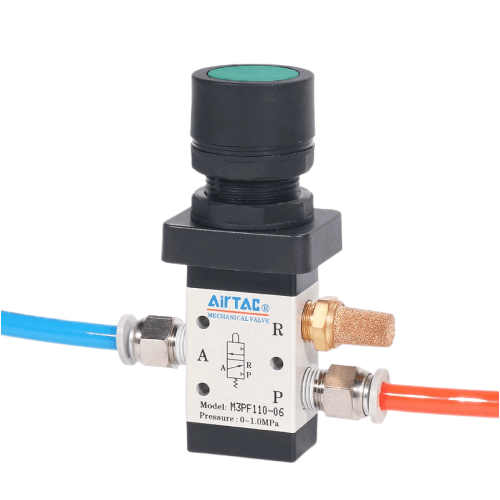

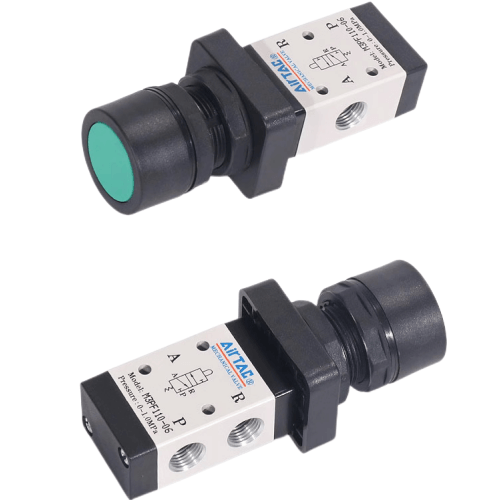

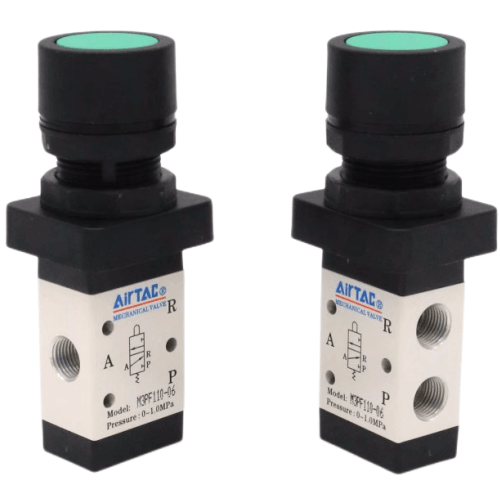

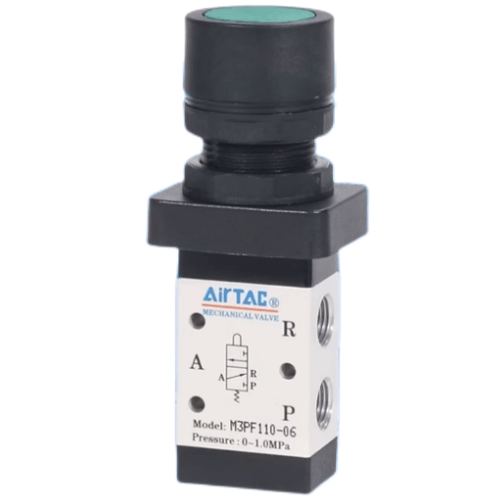

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21008GG
$26.74
Regular price
$34.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3PF21008GG
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
Installation note:
Apply thread sealant (PTFE tape recommended) on port connections.
For vertical mounting, ensure button faces accessible direction.
Maximum allowable side load on button: 5N. Clean with IPA wipes only.
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21008GG Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21008GG
- Type: 3-position (3P) 5-way mechanical valve
- Port configuration: P, A, B, R, S
- Port size: M5 (G1/8 thread equivalent)
- Operating pressure range: 0.05–0.7 MPa
- Operating temperature: -5℃ to 80℃
- Actuation force: 2.5N ±0.5N
- Body material: PA66 reinforced nylon (30% glass fiber)
- Seal material: HNBR (Hydrogenated Nitrile)
- Flow rate: 200 NL/min @0.5MPa
- Weight: 78g ±2g
- Dimensions: 38mm(L) × 24mm(W) × 43mm(H)
- Mounting style: Panel mount with M5 fastening thread
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥1,000,000 operations
Compact manual override valve with tactile feedback, featuring dual-color (green/gray) position indicators for visual status confirmation. The ergonomic flat-head design allows glove-friendly operation in confined spaces. Includes integrated silencer and anti-vibration lock mechanism.
Typical Applications:
- Emergency stop override in automated assembly lines
- Manual mode switching for robotic gripper systems
- Pneumatic circuit debugging and maintenance
- Safety interlock systems in food processing equipment
- Educational training rigs for mechatronics
Installation note:
Apply thread sealant (PTFE tape recommended) on port connections.
For vertical mounting, ensure button faces accessible direction.
Maximum allowable side load on button: 5N. Clean with IPA wipes only.
| Property | Property Value |
|---|---|
| sku | M3PF21008GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
