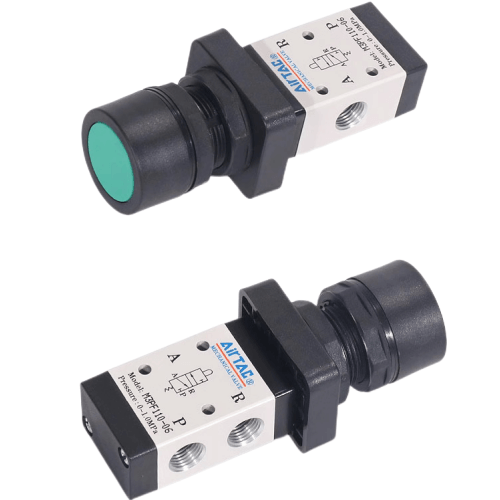

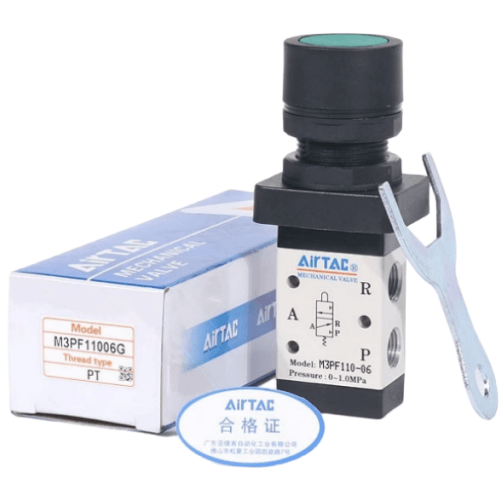

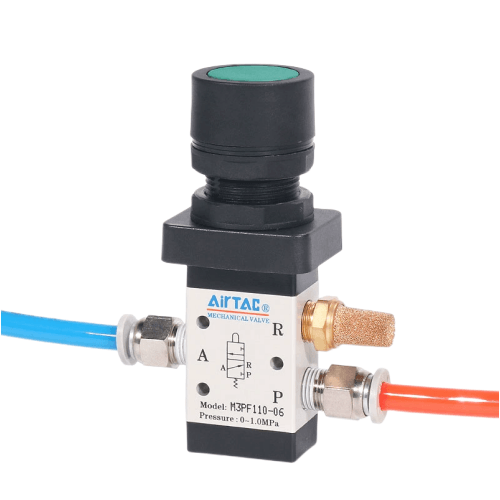

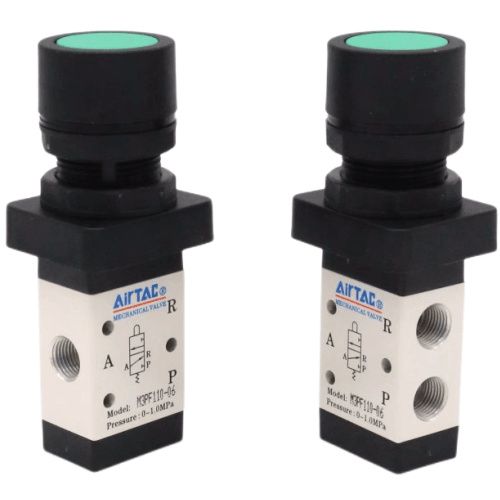

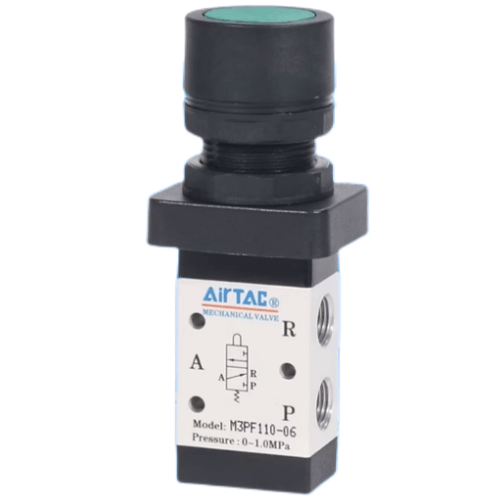

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21008R
$26.74
Regular price
$34.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3PF21008R
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Description:
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
Installation note:
Apply 0.5-0.8Nm torque during panel mounting. For vertical installations,
ensure button orientation within ±15° deviation from operator's normal
push direction. Lubricate seals with ISO VG32-grade pneumatic oil.
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21008R Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21008R
- Type: 3/2-way manual reset mechanical valve (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–1.0 MPa
- Operating temperature: -5℃ to 70℃
- Actuation force: 3.5–4.5 kgf
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (oil & heat resistant)
- Button stroke: 3.5±0.5mm
- Weight: 220±5g
- Dimensions: 58mm(L) × 42mm(W) × 34mm(H)
- Mounting: Direct panel mounting (Ø16mm cutout)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Manual override valve with tactile feedback, featuring a low-profile 8mm button head for space-constrained installations. The zinc-plated steel spring ensures reliable resetting, while the double-seal structure prevents internal leakage. Compatible with ISO 15407-1 standards.
Typical Applications:
- Emergency stop systems in CNC machinery
- Manual override for automated production lines
- Pneumatic fixture control in welding equipment
- Safety interlocks in material handling systems
- Test bench pneumatic circuit control
Installation note:
Apply 0.5-0.8Nm torque during panel mounting. For vertical installations,
ensure button orientation within ±15° deviation from operator's normal
push direction. Lubricate seals with ISO VG32-grade pneumatic oil.
| Property | Property Value |
|---|---|
| sku | M3PF21008R |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
