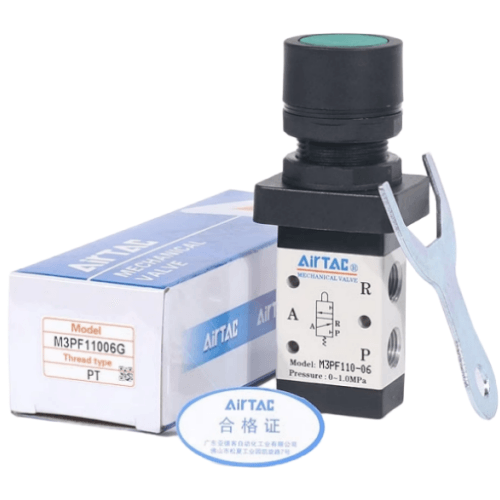

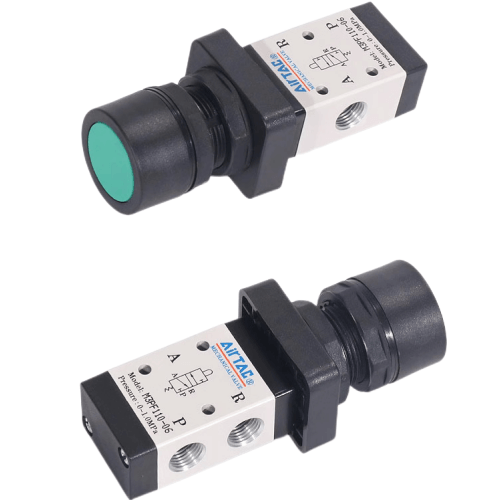

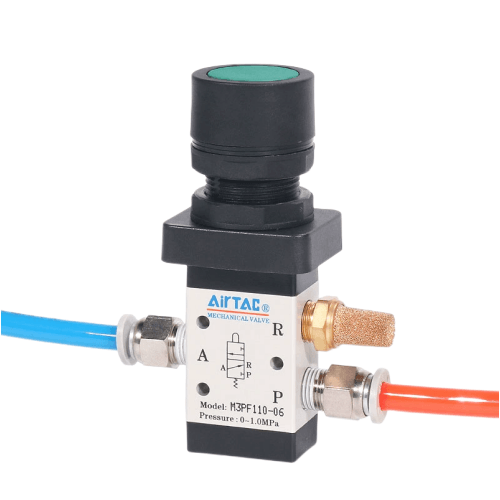

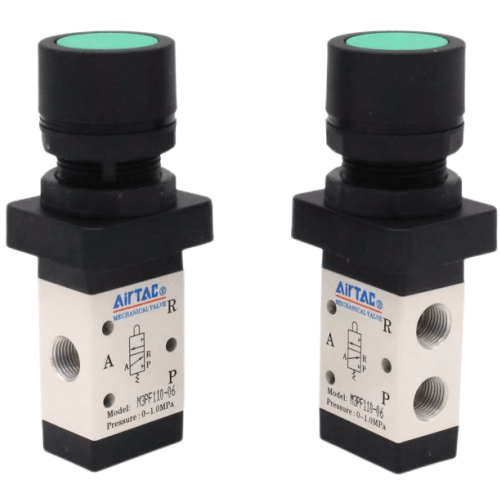

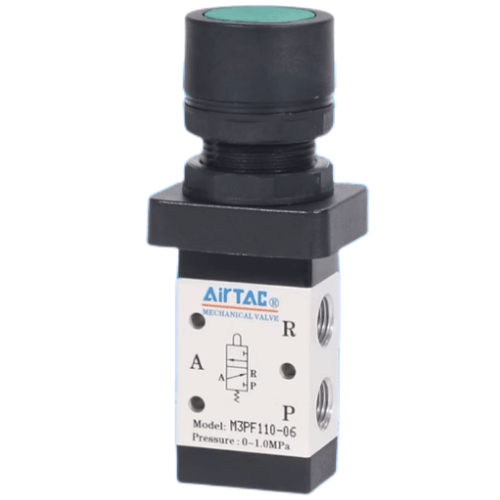

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21008RG
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21008RG Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21008RG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.7 MPa
- Operating medium: Filtered air (max 50μm particles)
- Actuation force: 3.5N ±0.5N
- Flow capacity: 120L/min (ANR)
- Weight: 185g ±5g
- Dimensions: 54mm(L) × 36mm(W) × 32mm(H)
- Body material: Glass-fiber reinforced PA66
- Seal material: High-grade HNBR rubber
- Temperature range: -10℃ to 80℃
- Protection rating: IP67 (dust/water resistant)
- Mechanical life: ≥500,000 cycles
- Mounting orientation: Any (360° rotatable button)
Manual override valve with tactile feedback, featuring anti-vibration lock mechanism and ergonomic button design. The zinc alloy actuator shaft ensures precise alignment and wear resistance. Includes built-in silencer (noise level ≤65dB) and dual-color position indicator (red/green). Requires 0.1-0.7MPa lubricated or non-lubricated air.
- Emergency stop systems in production lines
- Pneumatic fixture manual override control
- Food processing equipment (FDA-compliant seals)
- Mobile hydraulic platform safety circuits
- Robotic arm tool changers
Installation note:
Apply thread sealant on port connections. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
Perform monthly button stroke inspection in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | M3PF21008RG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
