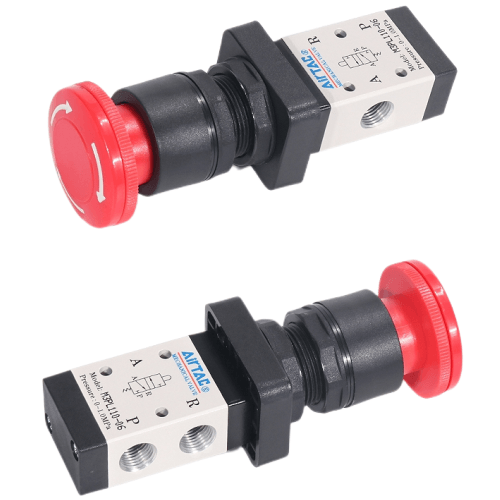

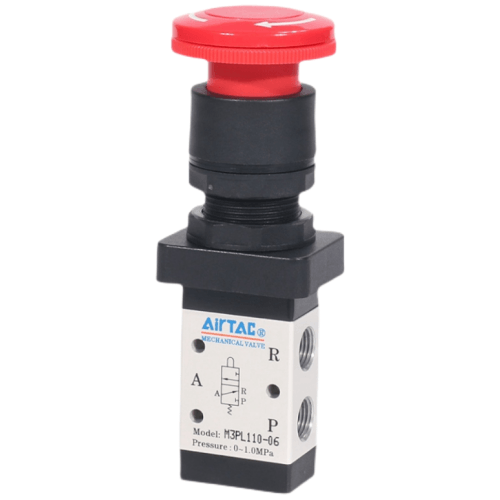

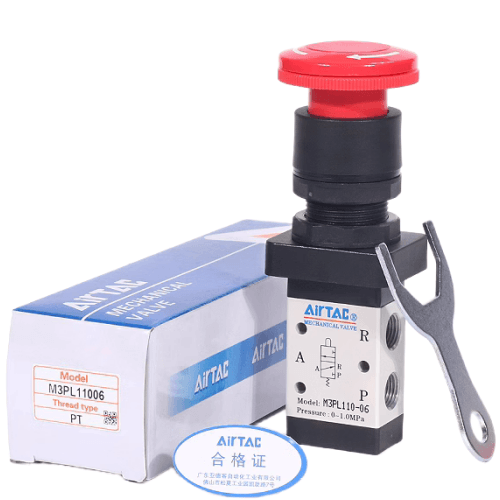

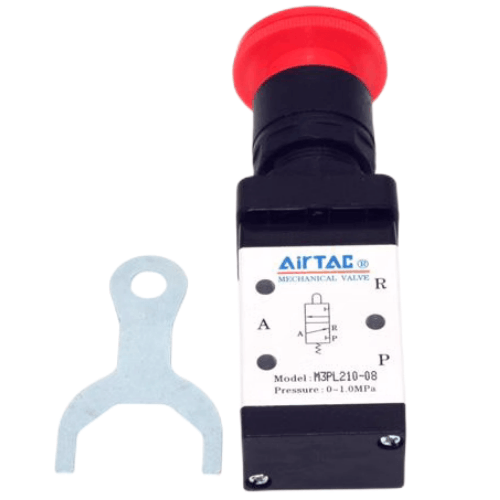

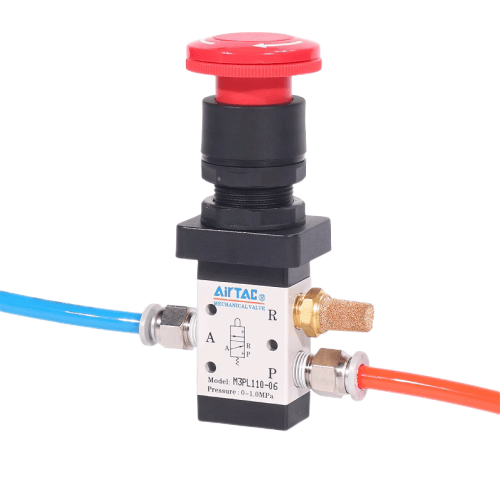

Airtac M3PL Detent Rotary Button Mechanical Valve M3PL21006
2. M3B, M3R, and M3L series utilize externally-provided shifting force for valve actuation, enabling position sensing or limit switch applications.
3. Manually actuated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature multiple control head configurations optimized for diverse operating scenarios.
4. Spool-type construction with internal sealing ring ensures pressure-independent operation (backpressure-resistant), delivering reliable sealing performance and smooth directional switching.
5. Maintenance-free operation requiring no lubrication.
6. Multi-position mounting capability enables flexible installation configurations.
7. M3C, M3D, M3Y, M3R, and M3I series employ metal alloy control heads for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: M3PL Stationary Rotary Pushbutton Type
AirTAC M3PL21006 Parking Rotary Button Mechanical Valve Specifications
- Model: M3PL21006
- Type: 3-position detent rotary button (Mechanical spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Actuation force: 3-5 N (rotational torque ≤0.3 N·m)
- Weight: 220g ±5%
- Dimensions: 55mm(L) × 32mm(W) × 45mm(H)
- Port thread depth: 10mm
- Rotational cycles: ≥50,000 operations
- Protection rating: IP54 (dust and splash resistant)
Manual override valve with tactile positioning feedback, featuring a triple-position detent mechanism (center neutral + two active positions). The chrome-plated brass rotary knob provides corrosion resistance in humid environments. Designed for systems requiring manual intervention without disconnecting pneumatic lines.
- Production line emergency stop systems
- Pneumatic fixture manual override
- Equipment maintenance bypass control
- Mobile hydraulic/pneumatic hybrid systems
- Training simulator pneumatic controls
Installation note:
Align arrow markings with flow direction. For vertical mounting,
ensure button rotation plane is accessible. Apply thread sealant
on ports (PTFE tape not recommended).
| Property | Property Value |
|---|---|
| sku | M3PL21006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
