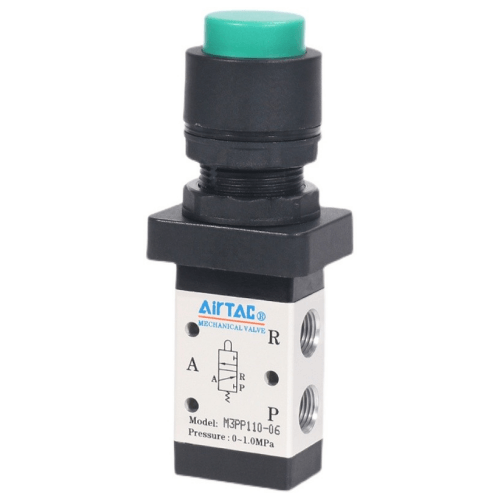

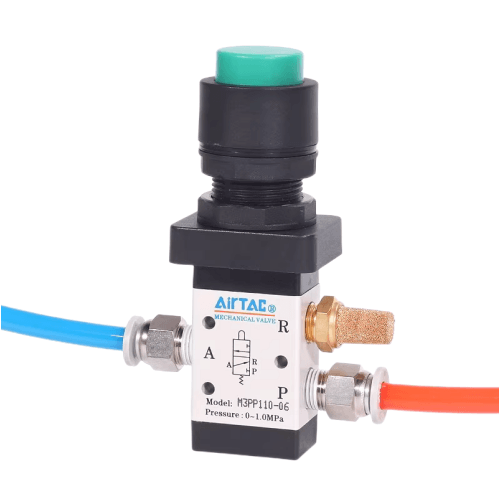

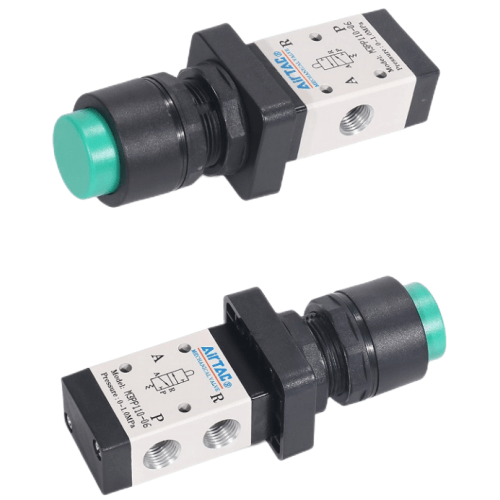

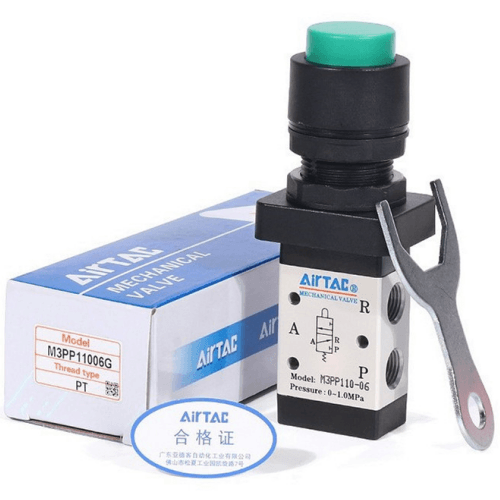

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21006G
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21006G Push Button Type Mechanical Valve Specifications
- Model: M3PP21006G
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.9 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 3.5N ±0.5N
- Mechanical life: ≥1,000,000 cycles
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Aluminum alloy (anodized finish)
- Temperature range: -10℃ to 80℃
- Weight: 120g ±5g
- Dimensions: 40mm(L) × 25mm(W) × 55mm(H)
- Protection rating: IP67 (dust/water resistant)
- Mounting: Panel cut-out Ø22mm
Robust mechanical valve featuring tactile convex button design with positive reset action. The chrome-plated steel spring and wear-resistant seals enable reliable operation in high-cycle applications. Integrated O-ring ensures leak-proof panel mounting. Compatible with ISO 15407-1 standards.
- Emergency stop circuits in pneumatic systems
- Manual override in automated production lines
- Material handling equipment controls
- Textile machinery safety interlocks
- Semiconductor fab tool manual controls
Installation note:
Apply 2-3Nm torque during panel mounting. For vertical installations,
use locking nut (M18×1.5) to prevent rotation. Lubricate seals with
silicone grease (ASGB-2 specification) during maintenance.
| Property | Property Value |
|---|---|
| sku | M3PP21006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
