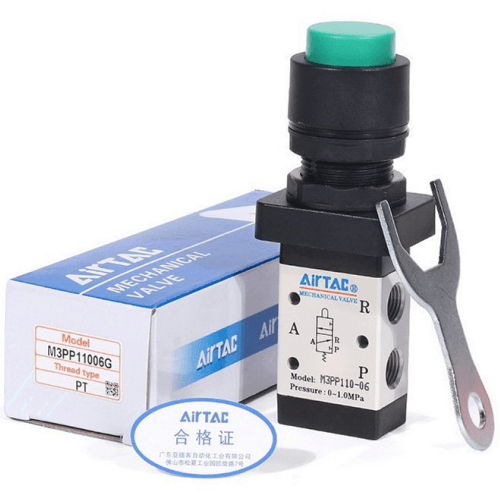

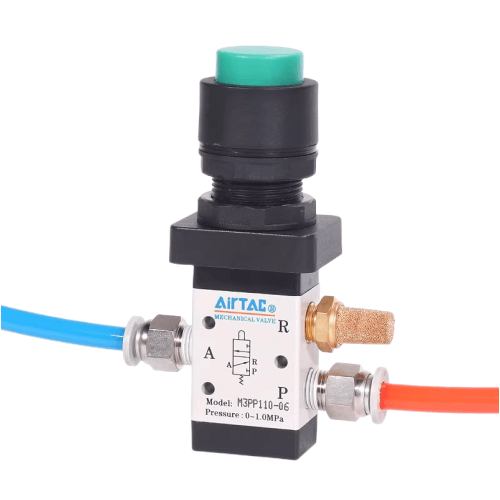

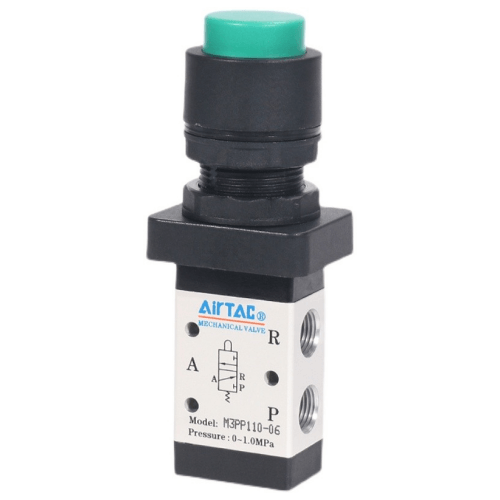

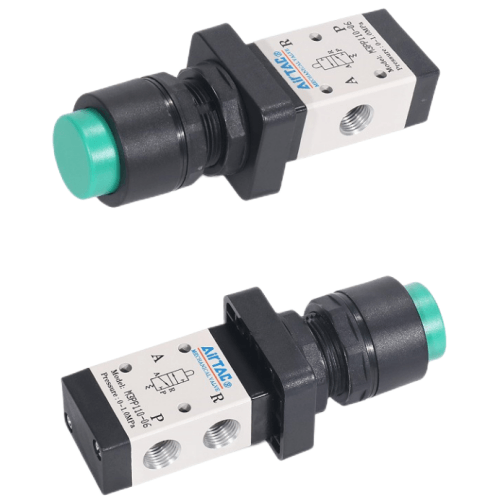

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21006R
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21006R Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP21006R
- Type: 2-position 3-way (2P3W), Normally Closed (NC)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 L/min (Cv=0.48)
- Button stroke: 5mm ±0.5mm
- Operating force: ≤25N
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 220g ±5g
- Dimensions: 50mm(L) × 35mm(W) × 42mm(H)
- Mounting: Direct manual operation with M5 mounting holes
- Cycle life: ≥500,000 operations
Robust mechanical valve featuring an ergonomic mushroom head design for emergency stop applications. The bright yellow button provides high visibility, while the stainless steel spring ensures reliable resetting. Includes dust-proof plunger structure and anti-rotation pin for stable operation. Compatible with ISO 15407-1 standards.
- Emergency stop systems in production lines
- Manual override in automated machinery
- Pneumatic training equipment
- Safety interlocks for press machines
- Mobile hydraulic/pneumatic test benches
Installation guidelines:
Mount within 45° of vertical position. Use locknuts (included) for panel mounting.
For horizontal mounting, install exhaust port downward to prevent dust ingress.
Lubricate with ISO VG32 turbine oil if used in high-cycle applications (>10 ops/min).
| Property | Property Value |
|---|---|
| sku | M3PP21006R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
