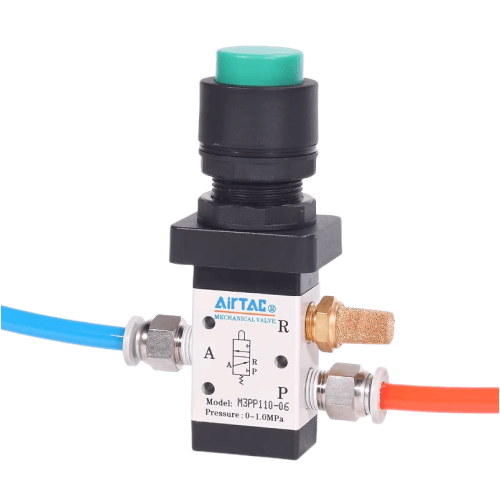

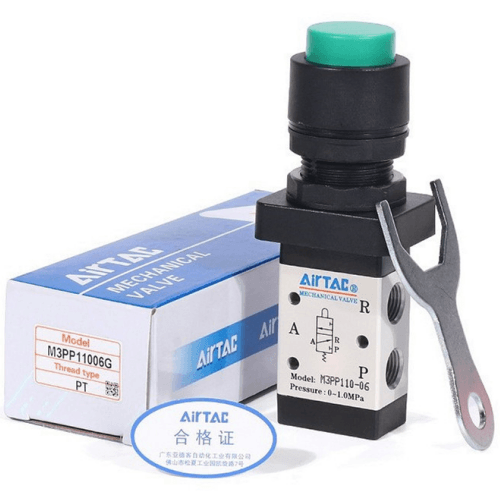

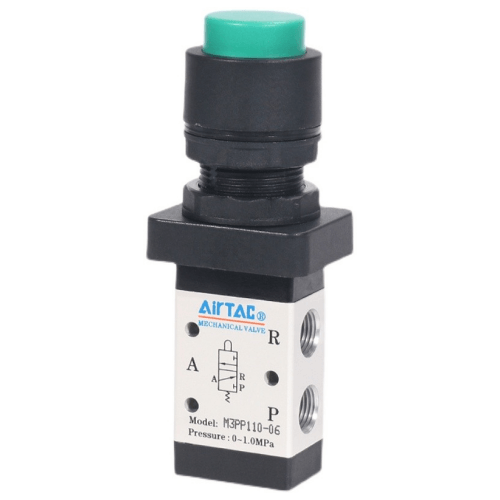

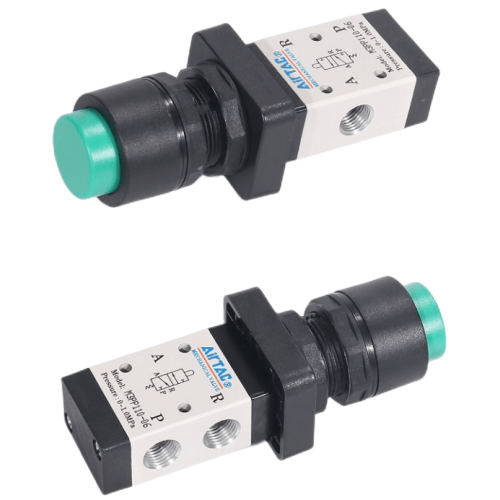

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21008R
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21008R Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP21008R
- Type: Normally closed mechanical valve (manual reset)
- Port size: M5 threaded (ISO 228-1 standard)
- Operating pressure: 0.05–0.7 MPa
- Voltage options: Not Applicable (Manual Actuation)
- Actuation force: 45-55N (emergency stop compliant)
- Contact rating: 5A @ 250VAC (gold-plated contacts)
- Mechanical life: ≥500,000 cycles
- Weight: 85g ±2g
- Dimensions: 25mm(L) × 25mm(W) × 43.5mm(H)
- Seal material: High-wear resistant PU
- Temperature range: -5℃ to 60℃
- Protection rating: IP65 (dust-tight & water jet resistant)
- Mounting: Panel cutout Ø22mm (DIN 43620 compliant)
Emergency stop safety valve with positive-lock mechanism featuring a 360° rotatable red mushroom head. The yellow base contains dual NO/NC contacts with arc suppression, designed for machine safety circuits. Includes integrated mounting clip for tool-free panel installation.
- Emergency stop stations in CNC machinery
- Safety interlocks for conveyor systems
- Manual override in automated production lines
- Test bench emergency cutoff systems
- Educational robotics safety controls
Installation note:
Requires 2.5mm² minimum wire gauge for electrical connections.
Perform monthly mechanical reset tests to maintain IEC 60947-5-5 compliance.
Avoid mounting near high-vibration sources (>15Hz).
| Property | Property Value |
|---|---|
| sku | M3PP21008R |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
