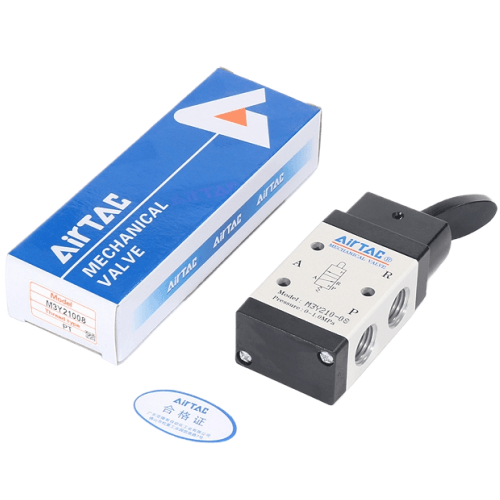

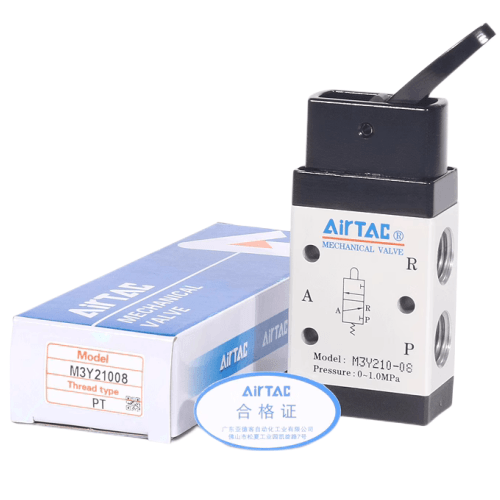

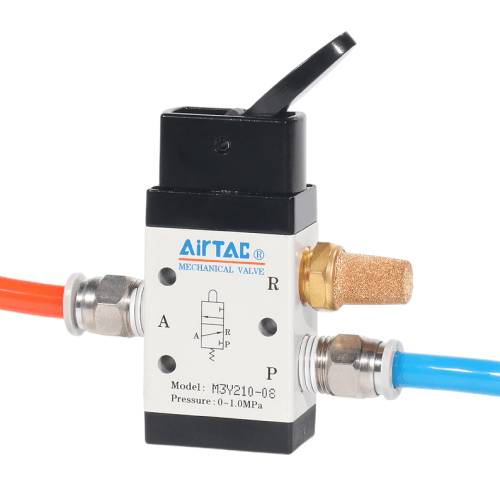

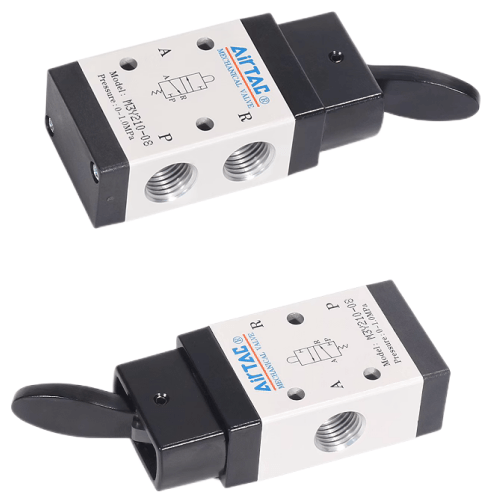

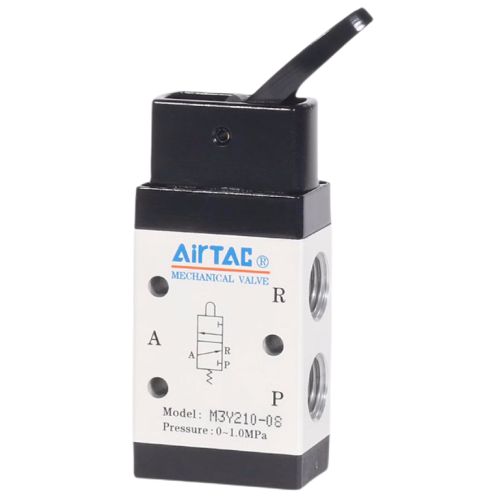

Airtac M3Y Rocker Arm Type Mechanical Valve M3Y210-P13A
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、M3B, M3R, and M3L series utilize external mechanism-driven actuation, enabling dual functionality for position sensing and stroke switching applications.
3、Manual-operated series (M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, M3HS) feature diversified actuator head configurations optimized for varied operational requirements.
4、Spool-type design with pressure-independent control force (zero back-pressure effect), incorporating internal ring sealing for reliable leak-proof performance and responsive directional switching.
5、Maintenance-free operation without lubrication requirements.
6、Multi-position mounting capability ensures flexible system integration and simplified installation.
7、Metal actuator construction in M3C, M3D, M3Y, M3R, and M3I series delivers enhanced lifespan and operational stability under demanding conditions.
Category: Mechanical Valves | Brand: AIRTAC | Series: M3Y Rocker Arm Type
AirTAC M3Y210-P13A Lever-Operated Mechanical Valve Specifications
- Model: M3Y210-P13A
- Type: 3/2-way spring return lever valve (monostable)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–0.8 MPa
- Actuation force: ≤5N at 0.6MPa
- Flow capacity: 750 L/min (ANR)
- Weight: 280g ±5g
- Dimensions: 76mm(L) × 42mm(W) × 64mm(H)
- Body material: Die-cast zinc alloy (nickel-plated)
- Seal material: Heat-resistant NBR (-20℃ to 120℃)
- Temperature range: -20℃ to 80℃ (with intermittent peaks to 120℃)
- Protection rating: IP67 (dustproof & waterproof)
- Mounting: Direct piping or sub-base installation
- Manual override: 90° lever rotation with position lock
Heavy-duty mechanical valve featuring a tactile lever action with positive click feedback. Designed for harsh environments with triple sealing structure (shaft, stem, and body seals). The chrome-plated lever resists chemical corrosion and accidental activation. Requires ISO 8573-1:2010 Class 3 compressed air.
- Emergency stop systems in assembly lines
- Pneumatic press machine safety controls
- Food processing equipment (NSF-compliant version available)
- Construction machinery manual override stations
- Robotic cell safety interlocks
Installation note:
For vertical mounting, install lever pivot pin horizontally. Lubricate with ISO VG32 turbine oil
before initial use. Allow 15mm service clearance for lever operation.
| Property | Property Value |
|---|---|
| sku | M3Y210-P13A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
