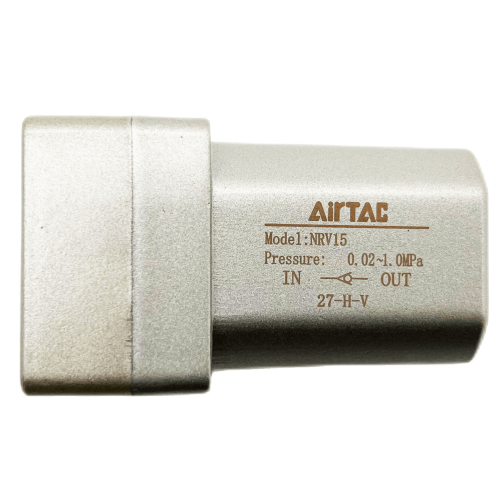

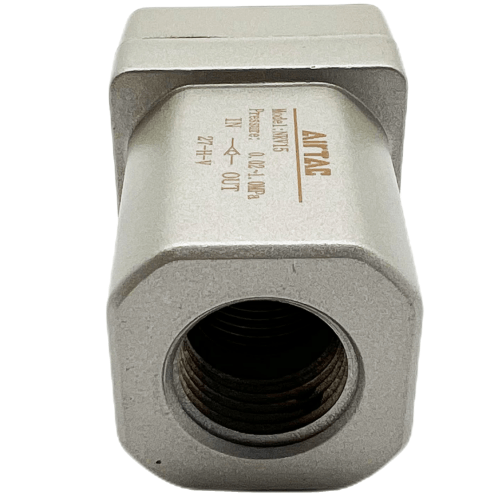

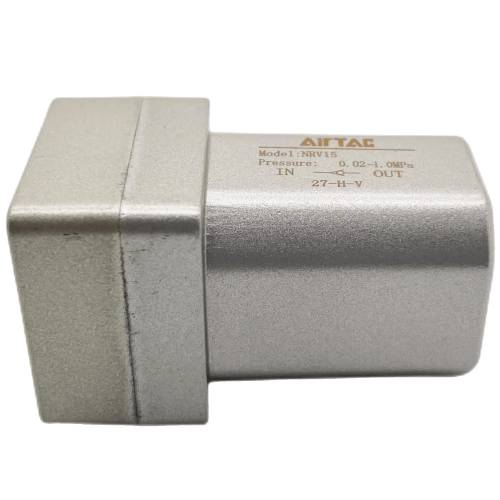

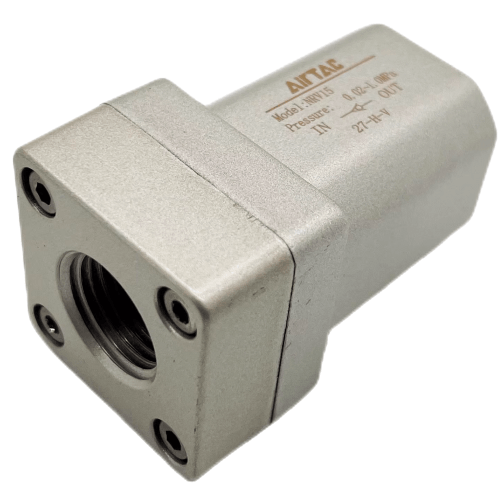

Airtac NRV Non-Return Valve NRV06
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Prevents backflow phenomena caused by pressure decay in air supply systems or excessive consumption-induced pressure drops;
3、Features a large effective flow area for optimized pneumatic performance;
4、Incorporates injection-molded POM valve core and elastomer-sealed orifice, engineered with compact construction for reliability.
Category: Check Valves
Brand: AIRTAC
Series: NRV
AirTAC NRV06 Check Valve Technical Details
- Model: NRV06
- Type: Inline spring-loaded poppet check valve
- Port size: PT1/8 (G1/8 optional)
- Max working pressure: 1.5 MPa
- Cracking pressure: 0.02 MPa
- Flow capacity: 250 L/min (ANR)
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Aluminum alloy (anodized)
- Temperature range: -20℃ to 80℃
- Weight: 85g ±2g
- Dimensions: 38mm(L) × 22mm(W) × 22mm(H)
- Thread engagement depth: 10mm
- Flow direction: Uni-directional (arrow marked)
Precision-engineered check valve with low cracking pressure and rapid response (≤5ms). Features zero-leakage sealing through precision-machined poppet and dual O-ring design. Anodized body resists corrosion in humid environments. Compatible with air, inert gases, and light hydraulic fluids.
- Pneumatic cylinder exhaust line backflow prevention
- Vacuum system pressure maintenance
- Air compressor loop protection
- Medical gas delivery systems
- Hydraulic pilot control circuits
Installation guidance:
Mount with flow direction arrow aligned to system requirements.
Use thread sealant on male threads (excluding NPT threads).
Avoid installation near heat sources exceeding 80℃.
| Property | Property Value |
|---|---|
| sku | NRV06 |
| Port | PT1/8 |
