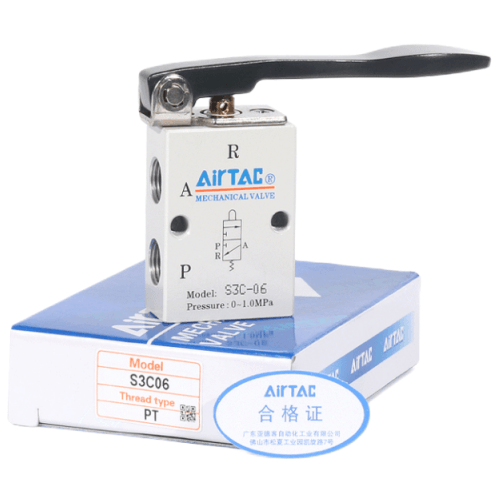

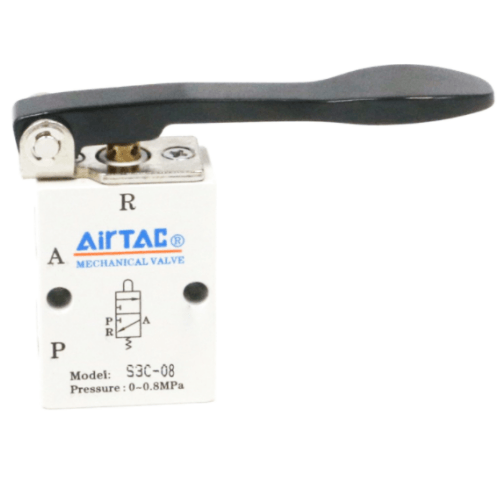

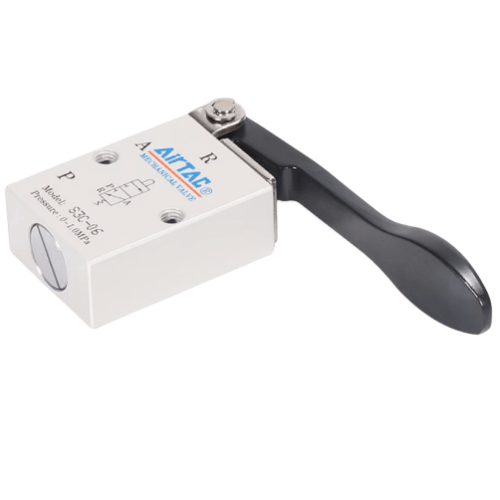

Airtac S3C Long Handle Type Mechanical Valve S3C-06
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Manual-operated series including S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D feature multiple structural configurations of actuator heads optimized for diverse application scenarios.
3. Poppet valve design ensures excellent sealing performance and responsive directional switching with maintenance-free lubrication.
4. Multi-position installation capability enables flexible mounting and simplified integration.
5. Metal construction of actuator heads in S3C, S3D, S3Y, S3R, and S3L series guarantees extended service life with superior reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3C Long Lever Mechanical Valve
AirTAC S3C-06 Long Handle Mechanical Valve Specifications
- Model: S3C-06
- Type: 3/2-way normally closed (mechanical lever-operated)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 650 L/min (ANR)
- Actuation force: ≤3.5N lever pressure
- Valve body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 220g ±5g (including lever)
- Dimensions: 70mm(L) × 35mm(W) × 52mm(H)
- Mounting: Direct piping or sub-base (ISO 15407-1 compatible)
- Lever length: 65mm (ergonomic anti-slip grip)
- Cycle life: ≥500,000 operations
Manual override valve with extended lever for tactile control in hard-to-reach areas. Features dual-position locking mechanism (push/pull operation) and dust-resistant internal structure. The chrome-plated lever provides 120° rotation range with positive click feedback. Compatible with ISO 8573-1 Class 3 compressed air quality.
- Emergency stop systems in conveyor lines
- Manual bypass control in automated machinery
- Pneumatic fixture locking mechanisms
- Educational training equipment
- Mobile hydraulic service units
- Cleanroom equipment requiring manual override
Installation note:
Ensure 50mm minimum clearance around lever swing path. Lubricate pivot point
with ISO VG32 hydraulic oil during maintenance. Not recommended for vertical
downward piping configurations.
| Property | Property Value |
|---|---|
| sku | S3C-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
