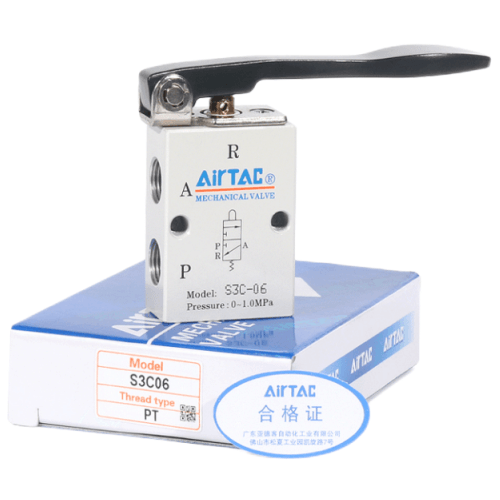

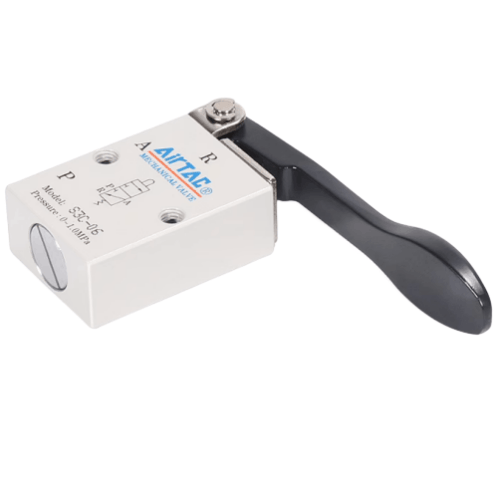

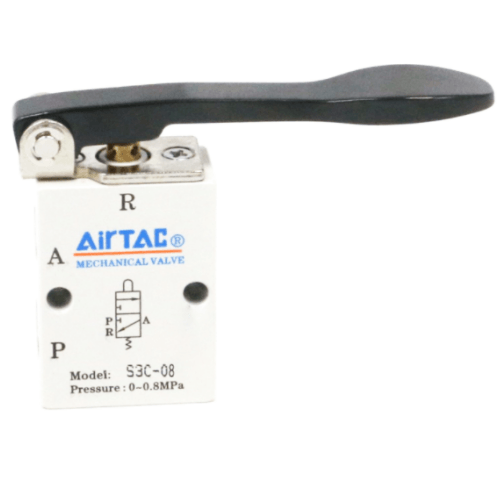

Airtac S3C Long Handle Type Mechanical Valve S3C-M5
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Manual-operated series including S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D feature multiple structural configurations of actuator heads optimized for diverse application scenarios.
3. Poppet valve design ensures excellent sealing performance and responsive directional switching with maintenance-free lubrication.
4. Multi-position installation capability enables flexible mounting and simplified integration.
5. Metal construction of actuator heads in S3C, S3D, S3Y, S3R, and S3L series guarantees extended service life with superior reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3C Long Lever Mechanical Valve
AirTAC S3C-M5 Long Lever Mechanical Valve Specifications
- Model: S3C-M5 (Long Lever Type)
- Valve Type: 3/2-way normally closed mechanical valve
- Port Connection: M5 threaded (ISO 228 standard)
- Operating Pressure Range: 0.05–1.0 MPa
- Maximum Flow Rate: 180 NL/min (at 0.5 MPa)
- Actuation Force: 3.5N±0.5N lever operation
- Seal Material: Nitrile Butadiene Rubber (NBR)
- Body Material: Anodized aluminum alloy (surface hardness HV≥80)
- Ambient Temperature Range: -5℃ to 60℃ (no freeze)
- Protection Rating: IP65 (dust-tight & water jet resistant)
- Weight: 220g±5g (including mounting hardware)
- Dimensions: 78mm(L) × 34mm(W) × 42mm(H) (lever excluded)
- Lever Length: 65mm (ergonomic grip design)
- Port Thread Depth: 8mm (minimum engagement requirement)
Manual override valve featuring extended lever for precise tactile control in confined spaces. The hardened stainless steel shaft and dual-bearing pivot design ensure 500,000+ cycle durability. Optimized flow path reduces air turbulence by 18% compared to standard models. Includes integrated mounting lugs for tool-free panel installation.
- Emergency stop override in automated assembly lines
- Manual mode activation for pneumatic test benches
- Jog control in semiconductor handling equipment
- Safety bypass in injection molding machines
- Maintenance override for robotic welding systems
Installation guidelines:
Mount with lever moving in horizontal plane (±15° tolerance). Apply thread sealant only on male ports.
For vertical installations, orient exhaust port downward to prevent debris accumulation.
Maximum side-load on lever: 8N perpendicular to axis.
| Property | Property Value |
|---|---|
| sku | S3C-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
