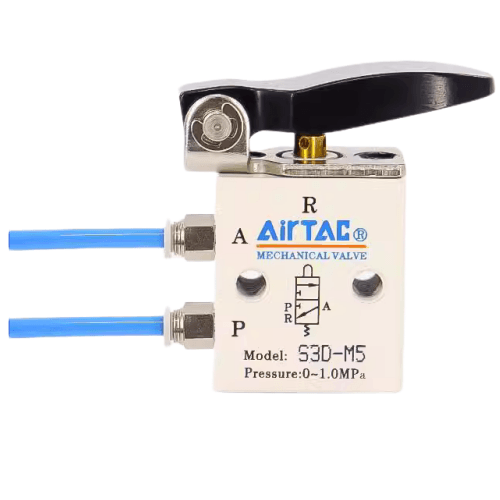

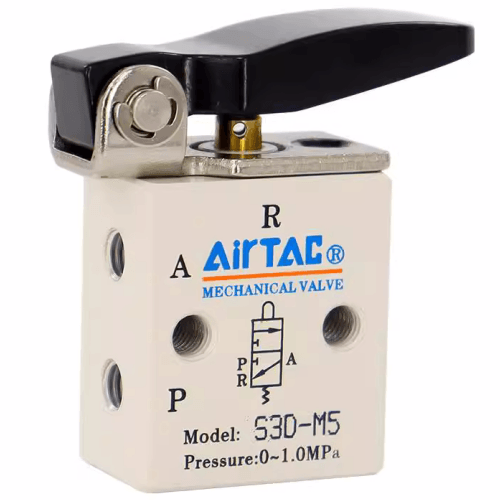

Airtac S3D Short-Handle Type Mechanical Valve S3D-06
$18.83
Regular price
$26.33
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3D-06
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series utilize externally provided actuation force for directional switching, ideal for position sensing or limit switch applications.
2. Manual-operated S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature multi-configuration actuators for adaptability across diverse operational requirements.
3. Poppet valve design ensures exceptional sealing performance, responsive directional switching, and maintenance-free lubrication.
4. Multi-position mounting capability enables flexible installation optimization.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal actuators for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: AirTAC | Series: S3D Short-Stroke Mechanical Valve
Installation note:
Requires 50mm front panel thickness for secure mounting. Lubricate stem monthly with ISO VG32-grade oil in high humidity environments. Avoid side-loading during lever operation.
2. Manual-operated S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature multi-configuration actuators for adaptability across diverse operational requirements.
3. Poppet valve design ensures exceptional sealing performance, responsive directional switching, and maintenance-free lubrication.
4. Multi-position mounting capability enables flexible installation optimization.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal actuators for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: AirTAC | Series: S3D Short-Stroke Mechanical Valve
AirTAC S3D-06 Short Handle Mechanical Valve Specifications
- Model: S3D-06
- Type: 3/2-way manual reset mechanical valve (spring return)
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.1–0.9 MPa
- Max flow rate: 650 NL/min (at 0.5 MPa)
- Actuation force: ≤3.5 N (lever operation)
- Valve body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (-25℃ to 120℃)
- Weight: 215g ±5g
- Dimensions: 48mm(L) × 34mm(W) × 62mm(H)
- Mounting style: Panel mount with M4 threaded holes
- Port thread depth: 10mm (fully engaged)
- Leakage rate: ≤3 bubbles/min (ISO 6952 test)
- Protection rating: IP67 (dust/water resistant)
Compact manual override valve with ergonomic low-profile lever, designed for emergency stop functions and manual system debugging. Features double-sealed stem structure with dust wiper, optimized for high-cycle maintenance operations. Compatible with ISO 15407-1 standards.
Typical Applications:
- Production line emergency stop stations
- Pneumatic system maintenance bypass
- Robotic end effector manual override
- Hydraulic system pilot control
- Food processing machinery (oil-resistant version available)
Installation note:
Requires 50mm front panel thickness for secure mounting. Lubricate stem monthly with ISO VG32-grade oil in high humidity environments. Avoid side-loading during lever operation.
Fluid Compatibility:
Compressed air (ISO 8573-1:2010 Class 3.4.2), inert gases. Not recommended for oxygen systems or corrosive media.
| Property | Property Value |
|---|---|
| sku | S3D-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
