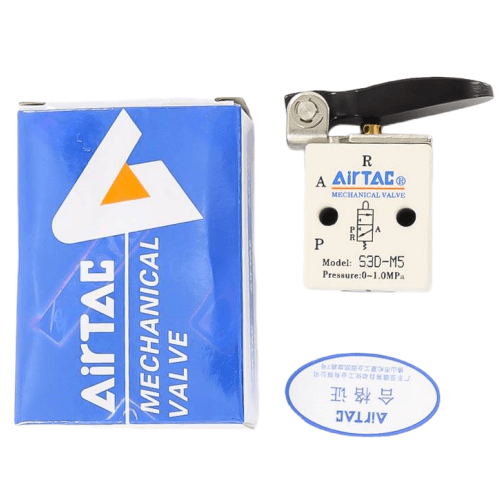

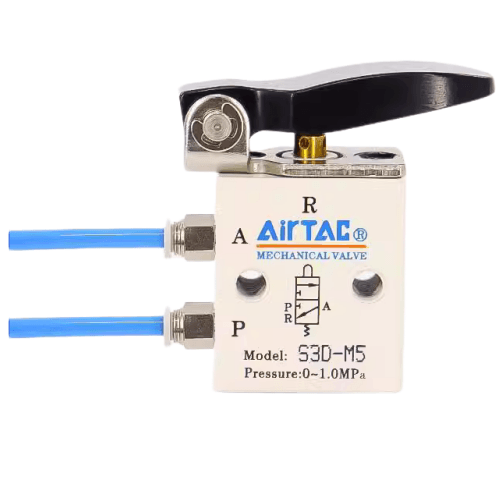

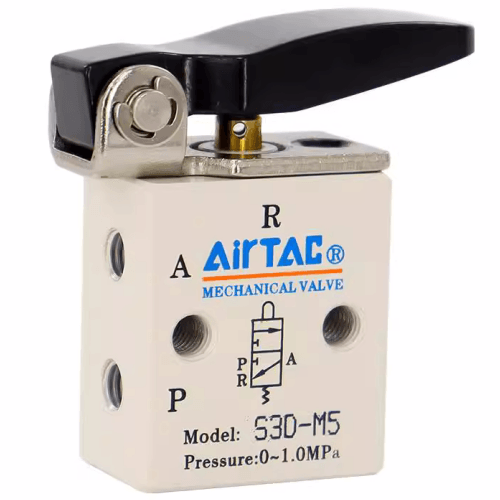

Airtac S3D Short-Handle Type Mechanical Valve S3D-08
2. Manual-operated S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature multi-configuration actuators for adaptability across diverse operational requirements.
3. Poppet valve design ensures exceptional sealing performance, responsive directional switching, and maintenance-free lubrication.
4. Multi-position mounting capability enables flexible installation optimization.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal actuators for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: AirTAC | Series: S3D Short-Stroke Mechanical Valve
AirTAC S3D-08 Short Handle Mechanical Valve Technical Details
- Model: S3D-08
- Type: 3-way (3/3) manual reset mechanical valve
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 750 L/min (ANR)
- Actuation force: 3.5N max (handle operation)
- Weight: 182g ±2%
- Dimensions: 40mm(L) × 30mm(W) × 60mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -5℃ to 80℃ (fluid/ambient)
- Port thread depth: 8.5mm (minimum engagement)
- Mounting: Panel mounting (M4 screw slots)
- Protection rating: IP40 (finger-safe design)
- Cycle life: ≥500,000 operations
Ultra-compact manual override valve with positive center position, featuring a low-profile 15mm actuator knob for space-constrained installations. The dual-spring centering mechanism ensures reliable position retention under vibration. Features a visible position indicator window and tool-free handle adjustment. Requires 40μm filtered dry air with ISO 8573-1:2010 class 3.4.3 air quality.
- Emergency stop circuits in packaging lines
- Manual mode override in CNC tool changers
- Safety interlocks for textile machinery
- Pneumatic fixture controls in automotive assembly
- Laboratory equipment manual purge systems
Maintenance protocol:
Lubricate pivot points with ISO VG32 turbine oil every 6 months.
Avoid side-loading the actuator handle - maximum lateral force 2N.
| Property | Property Value |
|---|---|
| sku | S3D-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
