Airtac S3D Short-Handle Type Mechanical Valve S3D-M5
2. Manual-operated S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature multi-configuration actuators for adaptability across diverse operational requirements.
3. Poppet valve design ensures exceptional sealing performance, responsive directional switching, and maintenance-free lubrication.
4. Multi-position mounting capability enables flexible installation optimization.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal actuators for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: AirTAC | Series: S3D Short-Stroke Mechanical Valve

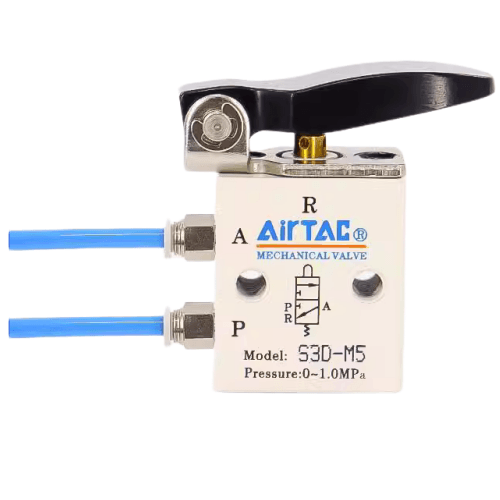

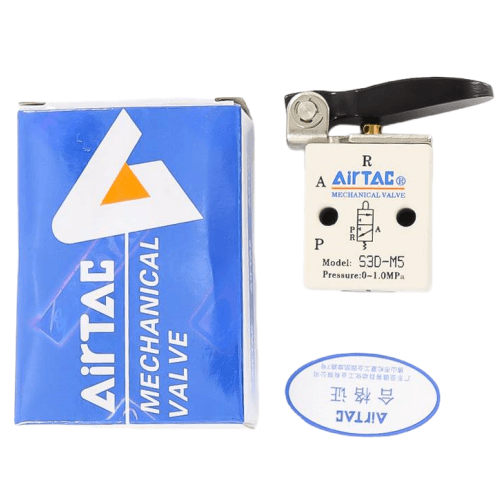

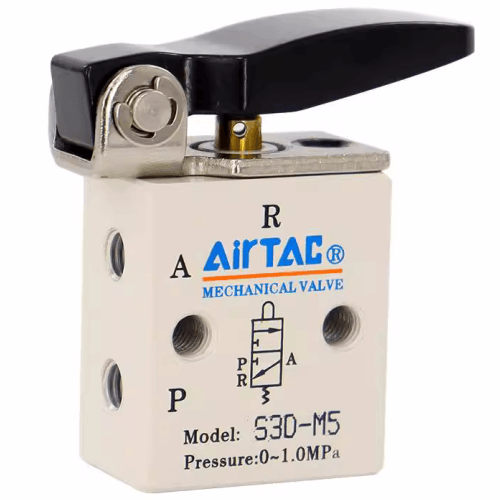

AirTAC S3D-M5 Short Handle Mechanical Valve Specifications
- Model: S3D-M5 (Short Handle Series)
- Valve type: 3-position 5-way detent type
- Port thread: M5×0.8 (ISO standard)
- Operating pressure: 0.1–0.7 MPa
- Max flow rate: 350 NL/min
- Actuation force: ≤5 N (manual override)
- Weight: 98g ±2g (including accessories)
- Dimensions: 32mm(L) × 21mm(W) × 45mm(H)
- Body material: Anodized aluminum alloy (black finish)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature range: -10℃ to 60℃ (non-freezing)
- Port alignment: 5 ports (P, A, B, EA, EB)
- Mounting options: Panel mount with M4 screws (2 points)
- Cycle life: ≥1,000,000 operations
Ultra-compact mechanical valve with tactile position feedback, featuring a low-profile 15mm handle extension for space-constrained installations. The hardened steel shaft and wear-resistant seals enable precise directional control in high-cycle applications. Compatible with ISO 15407-1 standards for pneumatic valve mounting.
- Miniature pneumatic grippers in SCARA robots
- Valve clusters in semiconductor wafer handling
- Dental chair positioning mechanisms
- Compact packaging line diverters
- Laboratory automation test stands
Installation guidelines:
Lubricate pilot ports with ISO VG32 turbine oil before initial use.
Maintain minimum 5mm clearance below valve for manual override operation.
Use anti-vibration washers in mobile equipment installations.
- AirTAC PFM-6-M5 pressure regulator
- AS-0402-M5 compact air filter
- SRC-04-M5 quick exhaust valve
| Property | Property Value |
|---|---|
| sku | S3D-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
