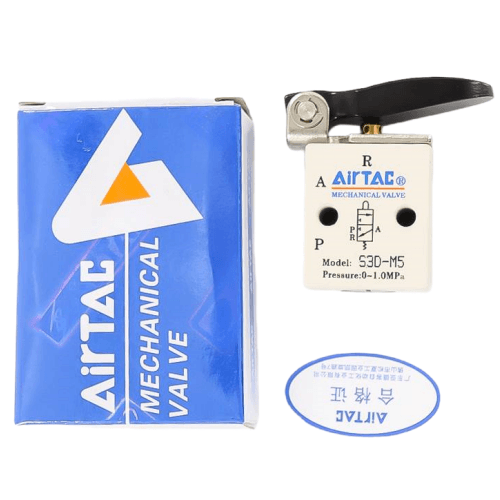

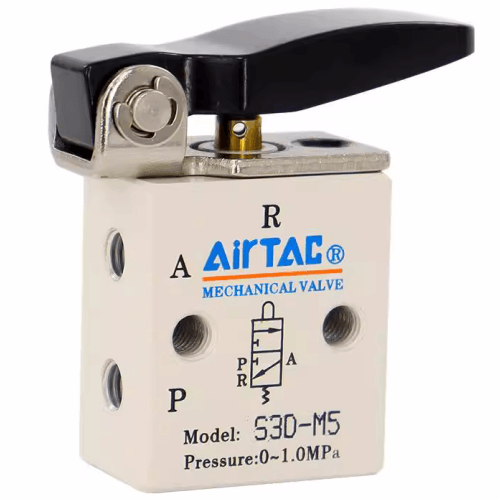

Airtac S3D Short-Handle Type Mechanical Valve S3D06G
2. Manual-operated S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature multi-configuration actuators for adaptability across diverse operational requirements.
3. Poppet valve design ensures exceptional sealing performance, responsive directional switching, and maintenance-free lubrication.
4. Multi-position mounting capability enables flexible installation optimization.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal actuators for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: AirTAC | Series: S3D Short-Stroke Mechanical Valve
AirTAC S3D06G Short Handle Mechanical Valve Technical Details
- Model: S3D06G (Short Handle Series)
- Valve type: 3-position 5-way (3P5W)
- Operation method: Mechanical lever actuation
- Port thread: G1/8 (BSPP) with NPT optional
- Operating pressure: 0.05–0.9 MPa
- Flow capacity: 750 NL/min (ANR)
- Actuation force: ≤ 3.5N
- Weight: 215g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 63mm(H)
- Body material: Reinforced PBT resin
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃ (no ice formation)
- Port alignment: ISO 5599-1 compliant
- Lever stroke: 18°±2° angular movement
- Mounting options: Panel mount with M4 screws (2 points)
Compact manual override valve featuring 30% shorter handle protrusion than standard models, designed for confined spaces in modular pneumatic systems. The dual-spring centering mechanism ensures positive position retention, while the hardened stainless steel shaft resists wear in high-cycle applications. Includes dust-resistant boot seal as standard.
- Robotic tool changers requiring side-mounted controls
- Semiconductor wafer handling equipment
- Emergency stop override in assembly line jigs
- Mobile hydraulic/pneumatic hybrid systems
- Food processing machinery (FDA-compliant grease option)
Installation guidelines:
Lubricate pivot points with ISO VG32 pneumatic oil before initial use.
Maintain minimum 6mm clearance around lever arc. For vertical mounting,
orient exhaust ports downward to prevent debris ingress. Cycle lever
fully 5-10 times after installation to seat seals properly.
| Property | Property Value |
|---|---|
| sku | S3D06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
