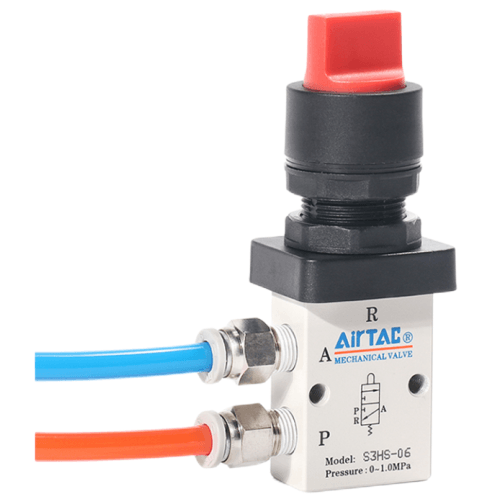

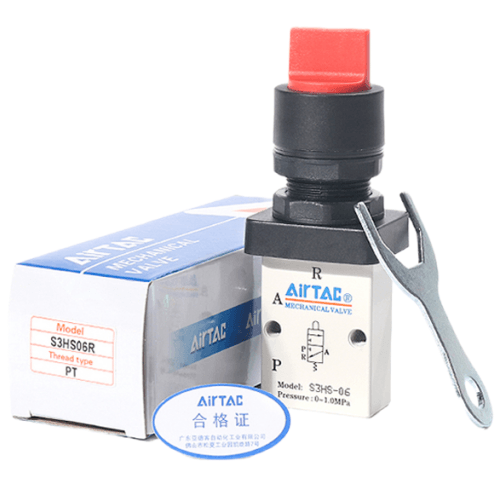

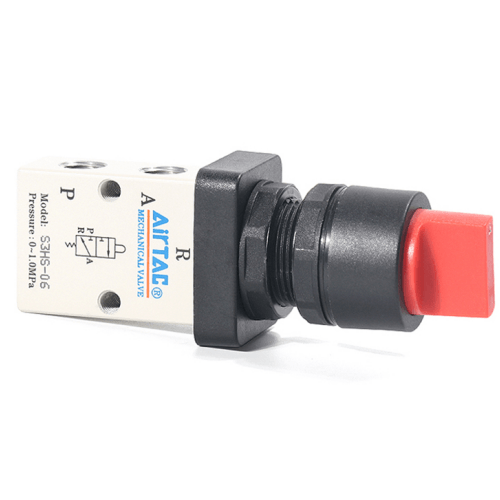

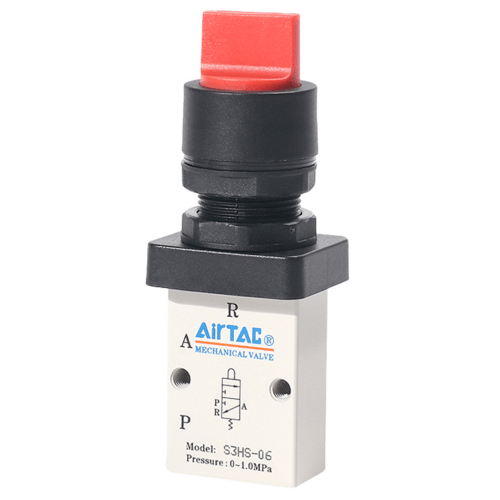

Airtac S3HS Selector Mechanical Valve S3HS05-P13A
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS05-P13A Selector Mechanical Valve Technical Details
- Model: S3HS05-P13A
- Type: 3-position selector valve (Mechanical spring return)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 5N±10% (manual operation)
- Weight: 210g ±5%
- Dimensions: 48mm(L) × 34mm(W) × 64mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: FKM fluorocarbon (standard) / NBR optional
- Temperature range: -10℃ to 80℃ (with FKM seals)
- Vibration resistance: 10-55Hz with 1.5mm amplitude
- Shock resistance: 100m/s² (approx. 10G)
- Manual override: Built-in push-button actuator
Industrial-grade mechanical selector valve featuring triple-position control (center closed position) with positive detent mechanism. The S3HS05-P13A combines manual override capability with dust-resistant construction, using hardened stainless steel shafts and precision-machined spools for >5 million cycle durability. Compatible with ISO 8573-1:2010 [3:4:3] class compressed air.
- Production line fixture clamping sequence control
- Pneumatic cylinder mid-position locking systems
- Emergency stop override in automated machinery
- Material handling equipment direction switching
- Semiconductor manufacturing tooling
Installation guidelines:
Mount in vibration-damped position using M4 mounting screws (not included).
Lubricate with ISO VG32 turbine oil if used in continuous cycling applications.
Maintain minimum 20mm clearance around exhaust ports (EA/EB).
