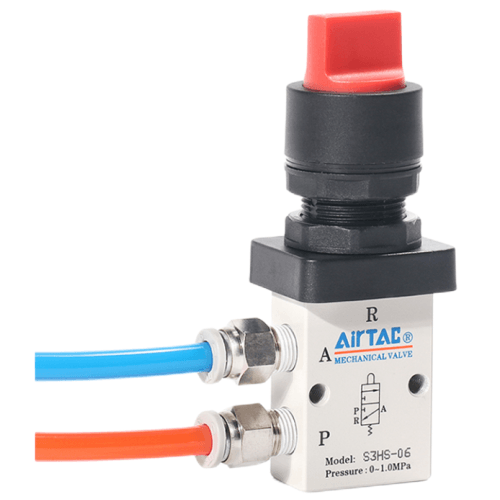

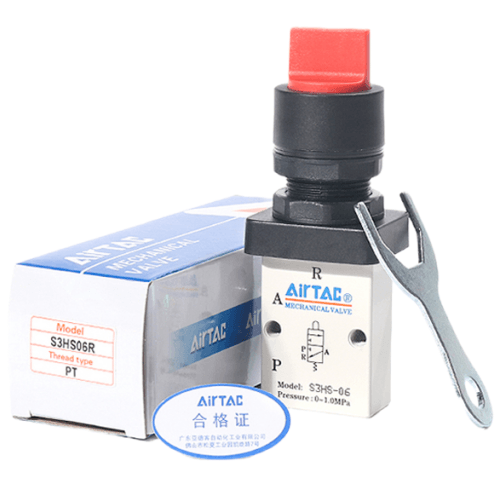

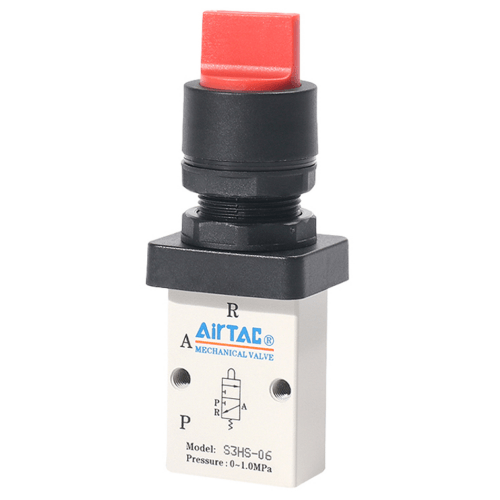

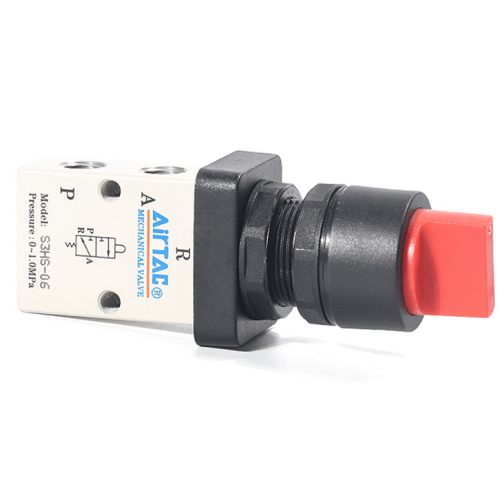

Airtac S3HS Selector Mechanical Valve S3HS06G
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS06G Selector Mechanical Valve Technical Details
- Model: S3HS06G
- Type: 3-position selector valve (Mechanical detent)
- Port configuration: 3/3-way closed center
- Port size: G1/4 (BSPP) with 6mm tube adapters included
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 350 L/min (ANR) at 0.5 MPa
- Actuation force: 3.5N ±0.5N lever operation
- Body material: Anodized aluminum alloy (A6063)
- Seal material: Heat-resistant NBR (-20℃ to 120℃)
- Weight: 215g ±5g (excluding accessories)
- Dimensions: 58mm(L) × 34mm(W) × 42mm(H)
- Mounting: Panel mount with M4 threaded holes
- Leakage: <5 bubbles/min under ISO 6953-3 test
- Cycle life: 1,000,000 operations minimum
Manual override valve with precision detent mechanism for stable position holding. Features triple sealing design for leak-free performance in vacuum or pressure applications. The chrome-plated lever provides tactile feedback with 45° switching angle. Compatible with air, inert gases, and light hydraulic fluids (ISO VG32 or lower).
- Production line emergency stop circuits
- Hydraulic tool mode selection systems
- Semiconductor manufacturing equipment
- Test bench pressure/vacuum switching
- Food processing machinery (FDA-compliant grease option available)
Installation guidelines:
Use lock nuts for vibration resistance in mobile applications.
For horizontal mounting, install exhaust port downward to prevent debris accumulation.
Apply silicone-free lubricant (Parker O-Lube recommended) quarterly in high-cycle environments.
| Property | Property Value |
|---|---|
| sku | S3HS06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
