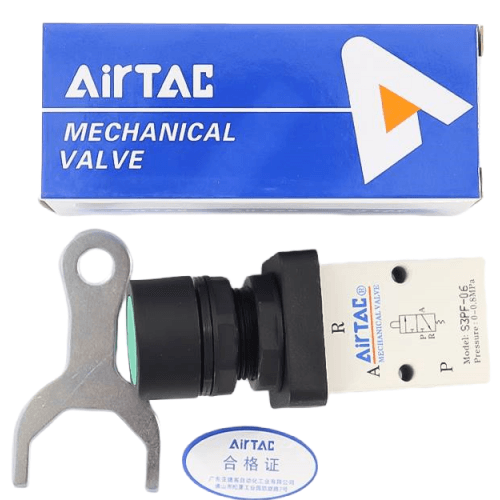

Airtac S3PF Flat Button Type Mechanical Valve S3PF-06-B
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

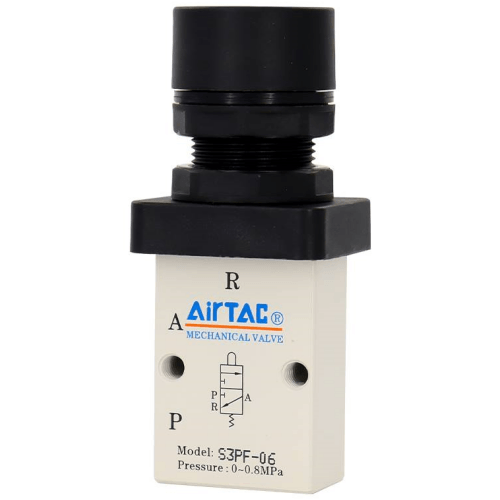

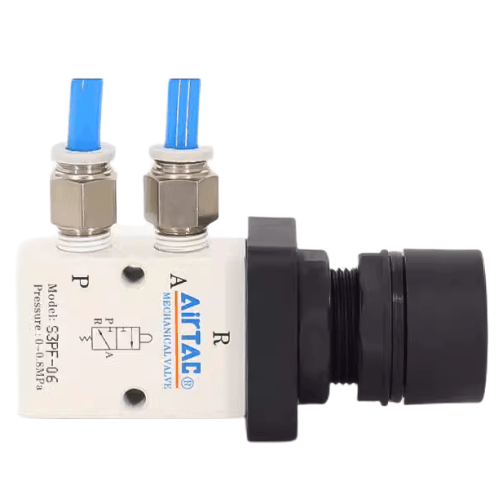

AirTAC S3PF-06-B Flat Head Push Button Mechanical Valve Specifications
- Model: S3PF-06-B
- Type: 3/2-way manual reset mechanical valve (spring return)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 3.5N ±0.5N
- Body material: Aluminum alloy with hard anodizing
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 195g ±5g
- Dimensions: 40mm(W) × 40mm(H) × 60mm(L)
- Mounting type: Panel mounting (10mm thickness max)
- Protection rating: IP54 (standard)/IP65 (with optional cover)
- Actuation type: Mushroom head emergency stop style
Robust mechanical valve featuring a lockable flat push button with twist-to-release mechanism for safety applications. The anti-vibration design maintains stable operation in high-frequency environments. Integrated dust shield prevents particulate ingress. Requires manual reset after activation.
- Emergency stop systems in CNC machinery
- Safety interlocks on automated production lines
- Pneumatic press machine controls
- Material handling equipment emergency circuits
- Test bench safety override systems
Installation note:
Ensure proper button clearance (min. 15mm travel space above actuator).
For IP65 rating, install optional protective cover (S3PF-CV-06) and
apply thread sealant on port connections. Lubricate monthly with
ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | S3PF-06-B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
