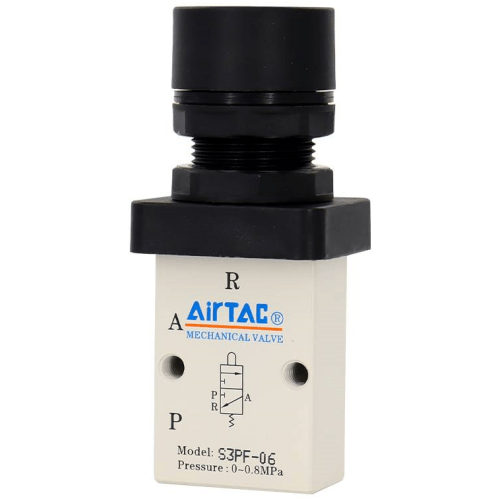

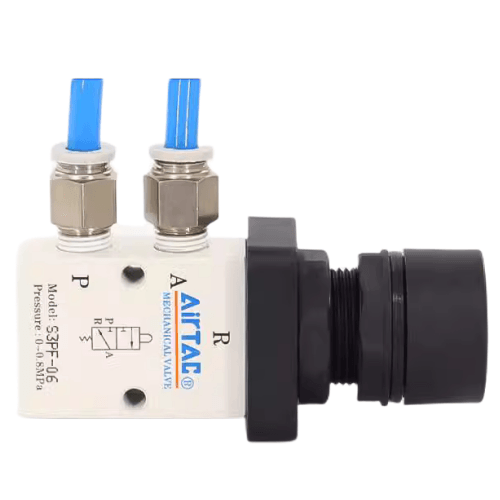

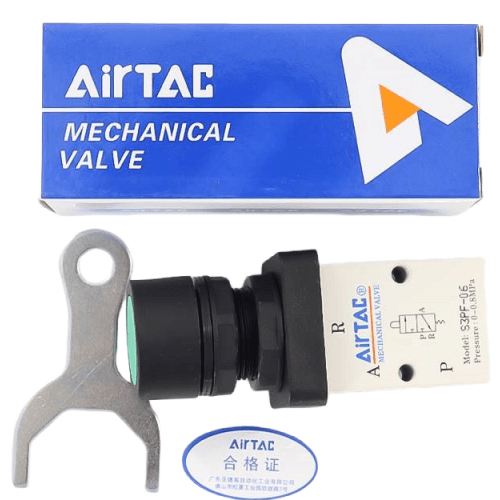

Airtac S3PF Flat Button Type Mechanical Valve S3PF-06-G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF-06-G Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PF-06-G
- Type: 3/2-way normally closed (manual reset)
- Port size: G1/8 (ISO228 standard)
- Thread type: External thread (M5x0.8 mounting screws)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 450 NL/min (at 0.5 MPa)
- Actuation force: 3.5–4.5 N
- Body material: Anodized aluminum alloy (black oxide finish)
- Seal material: High-grade NBR (nitrile) rubber
- Temperature range: -20℃ to 80℃ (with <70% RH)
- Weight: 185g ±5g
- Dimensions: 48mm(L) × 34mm(W) × 62mm(H) (excluding button protrusion)
- Button travel: 3.2mm ±0.3mm
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve with ergonomic flat-head design for precise tactile control. Features anti-vibration locknut design and corrosion-resistant construction. The chrome-plated steel spring ensures consistent reset force. Requires 5-40μm filtered compressed air with ISO 8573-1:2010 Class 3 air quality.
- Emergency stop systems in assembly lines
- Manual override for automated machinery
- Pneumatic training equipment
- Food processing manual control stations
- Mobile hydraulic service units
- Test bench pressure regulation
Installation guidelines:
Mount using M5 screws with 12-15 N·m torque. Maintain ≥15mm clearance
around button for operation. Lubricate pivot points annually with
ISO VG32 hydraulic oil. For vertical mounting, install exhaust port downward.
Do NOT use with oxygen or combustible gases.
Maximum allowable leakage: 30 cm³/min at 0.6 MPa.
Button surface temperature may reach 55℃ in continuous operation.
| Property | Property Value |
|---|---|
| sku | S3PF-06-G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
