Airtac S3PF Flat Button Type Mechanical Valve S3PF-06-R
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

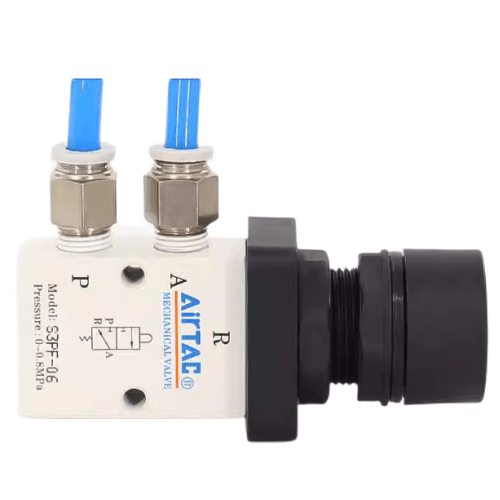

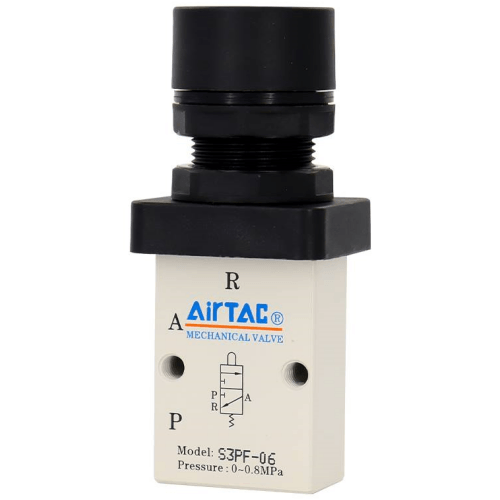

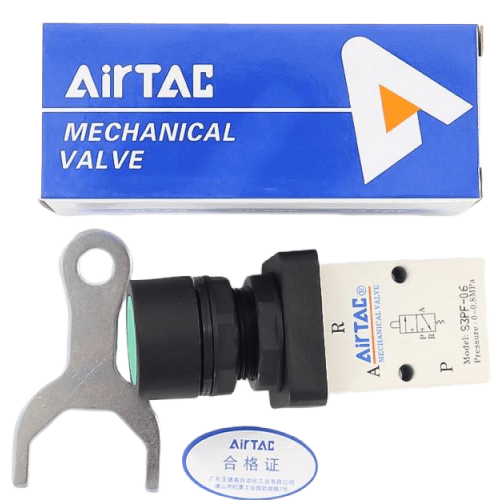

AirTAC S3PF-06-R Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PF-06-R
- Type: 3/2-way normally closed mechanical valve (manual override)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Temperature range: -5℃ to 60℃
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Actuation force: 3-5N (button press)
- Flow capacity: 350 NL/min @ 0.5 MPa
- Weight: 180g ±5g
- Dimensions: 42mm(L) × 42mm(W) × 42mm(H)
- Mounting orientation: Any direction (recommended vertical)
- Button type: Flat head with tactile feedback
- Locking mechanism: Non-latching (momentary action)
- Mechanical life: ≥1,000,000 cycles
- Seal life: ≥500,000 cycles
- IP rating: IP54 (dust and splash resistant)
Compact manual override valve with ergonomic flat-head design for precise tactile control. Features anti-corrosion nickel plating and positive-position feedback through distinct "click" engagement. The balanced spool design ensures smooth operation even under pressure fluctuations. Requires 50μm filtered air with max 1% oil content.
- Emergency stop override in automated production lines
- Manual mode activation in pneumatic control panels
- Jog mode control for machinery alignment/maintenance
- Safety circuit bypass in packaging equipment
- Educational pneumatic training systems
Operation guidance:
Apply perpendicular force to button center. For frequent use applications,
perform monthly lubrication with ISO VG32 hydraulic oil. Avoid side-loading
the actuator to prevent internal component wear.
Environmental note:
Not recommended for chemical exposure or outdoor UV environments.
Maximum 80% relative humidity. Do not use with phosphate ester-based fluids.
| Property | Property Value |
|---|---|
| sku | S3PF-06-R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
