Airtac S3PF Flat Button Type Mechanical Valve S3PF-08-B
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

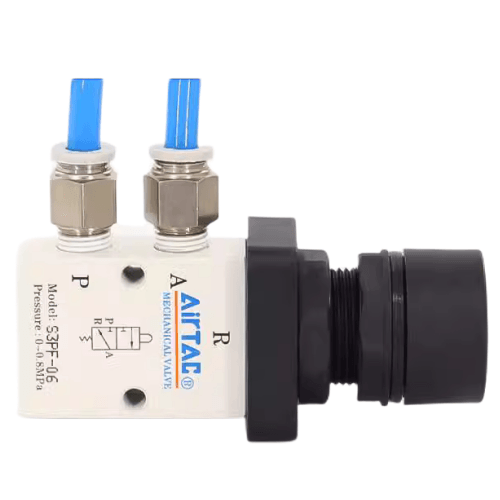

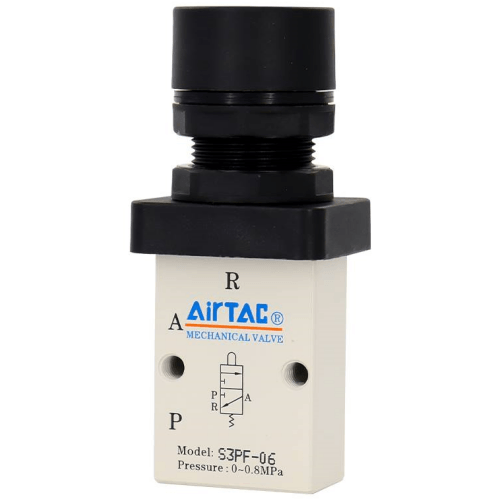

AirTAC S3PF-08-B Flat Push Button Mechanical Valve Specifications
- Model: S3PF-08-B
- Type: 3/2-way manual reset mechanical valve (push-pull operation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–1.0 MPa
- Flow capacity: 750 l/min (ANR)
- Actuation force: 3.5N ±0.5N
- Operating temperature: -5℃ to 60℃
- Body material: PA66+GF25 (30% glass fiber reinforced)
- Seal material: HNBR (Hydrogenated Nitrile)
- Button stroke: 3.8±0.5mm
- Mounting style: Panel mount (requires 16.5mm diameter cutout)
- Protection rating: IP67 (dust/water resistant)
- Electrical connection: Optional M5 microswitch (SPDT contacts)
- Weight: 85±5g (excluding optional accessories)
- Dimensions: 40mm(D) × 64mm(H) × 29mm(W)
Rugged manual override valve with positive tactile feedback, featuring a low-profile 16mm diameter button head for flush panel mounting. The dual-spring return mechanism ensures reliable position holding under vibration. Integrated O-ring groove allows direct sealing against panels up to 5mm thick. Optional position indicator window available (S3PF-08-BI variant).
- Emergency stop systems in pneumatic circuits
- Manual override for automated production line jigs
- Mobile hydraulic/pneumatic equipment control panels
- Cleanroom environment control systems
- Educational training equipment for mechatronics
Installation note:
Apply silicone grease (ASG-5002 recommended) to sealing surfaces during assembly.
Maximum panel thickness: 5mm aluminum or 8mm plastic. For vertical mounting,
ensure button orientation aligns with operator access direction.
| Property | Property Value |
|---|---|
| sku | S3PF-08-B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
