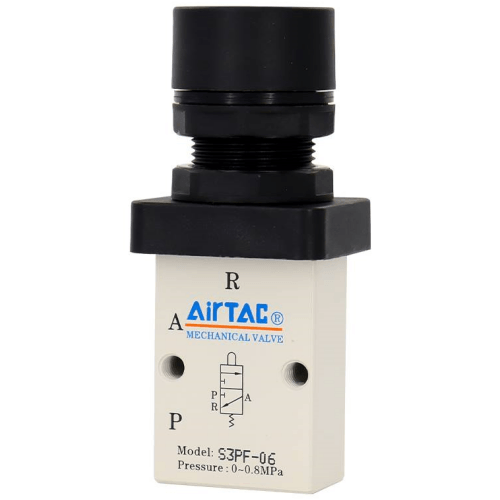

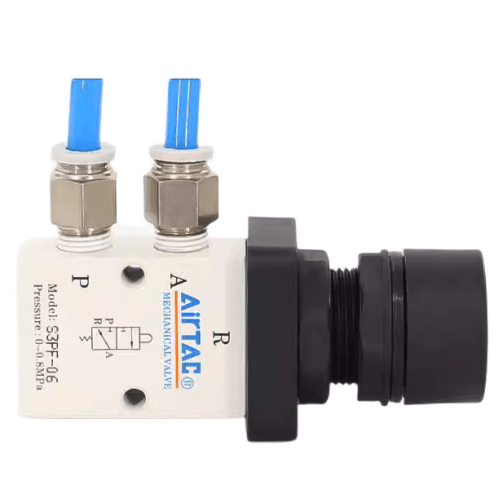

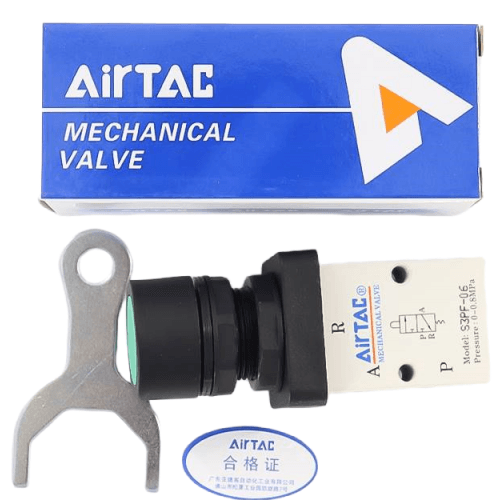

Airtac S3PF Flat Button Type Mechanical Valve S3PF05-P12A
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF05-P12A Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PF05-P12A
- Type: 3/2-way manual reset mechanical valve (push button operation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.1–0.7 MPa
- Max flow rate: 450 L/min (ANR)
- Actuation force: 3.5–4.5 N
- Weight: 120g ±5% (including accessories)
- Dimensions: 30mm(L) × 30mm(W) × 20mm(H)
- Body material: Aluminum alloy (anodized surface)
- Seal material: Nitrile rubber (NBR) with PTFE coating
- Temperature range: -20℃ to 80℃ (non-freezing)
- Response time: ≤50ms (full stroke actuation)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥1,000,000 operations
Compact mechanical valve featuring momentary contact design with automatic spring return. The flat-head button provides tactile feedback and prevents accidental activation. Precision-machined spool structure ensures ≤0.1 MPa minimum operating pressure for low-pressure systems. Includes built-in silencer (35 dB(A) noise level).
- Emergency stop systems in automated production lines
- Pneumatic fixture clamping controls
- Manual override for robotic assembly units
- Food processing machinery (NBR seals meet FDA 21 CFR 177.2600)
- Semiconductor manufacturing equipment
Installation guidelines:
Mount using M4 screws with 28mm center distance. Lubricate with ISO VG32
pneumatic oil if used in high-cycle applications (>10 operations/minute).
Avoid side-loading the actuator shaft during installation.
| Property | Property Value |
|---|---|
| sku | S3PF05-P12A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
